Jiangxi Well-tech International Mining Equipment Co., Ltd. is one of the leading manufacturers and suppliers of jaw crusher in China, also supports customized service. Please feel free to wholesale durable jaw crusher for sale here from our factory. For price consultation, contact us.

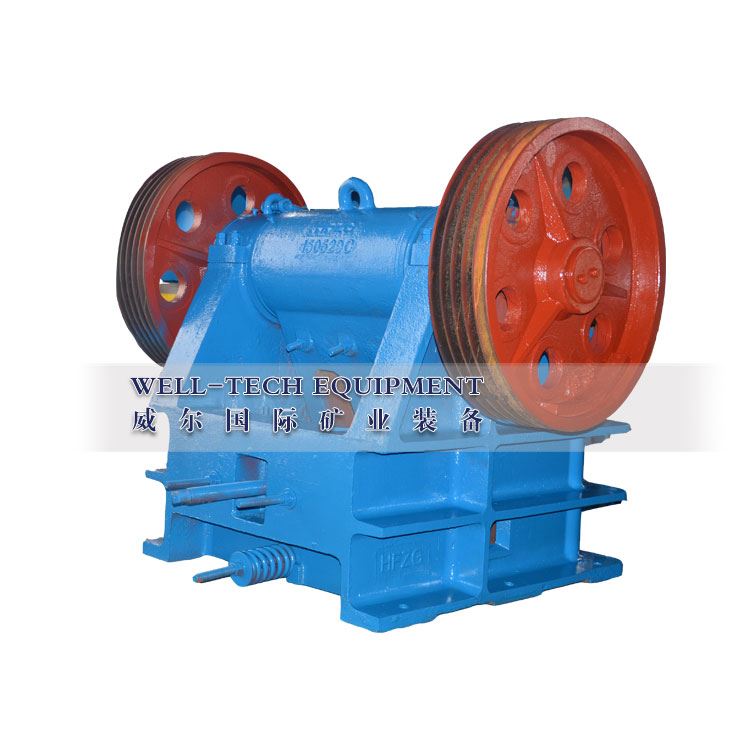

Jaw Crusher
Description
Name:Jaw Crusher/Stone crusher/Rock crusher/Primary crusher
Feeding size:-600mm.
Capacity:-150TPH
Crusher Material Compressive strength:less than 320MPa.
Jaw crusher Application:Crush kinds of mining stones, in mining, metal industry, building material, highway, railway, and chemical industry.
Manufacturer:JiangXi Well-tech International Mining Equipment Co.,Ltd.
Jaw crusher/Stone crusher working principle:
The motor through belt transmits power, drives the moving jaw plate do periodic motion to
the fixed jaw plate surround the eccentric shaft. when moving jaw moves up,The angle between toggle plate and moving jaw increases . So the moving jaw closes to the fixed jaw. The stone will be crushed in this process. when moving jaw moves down,The angle of Jaw Crusher between toggle plate and moving jaw decreases. the moving jaw of Jaw Crusher moves away from fixed jaw through the pulling of rod and spring, After crushing the material small stone will be discharged from the outlet of Jaw Crusher.
Jaw crusher structure
Features
● Big capacity.
● Evenly granularity
● Simple structure
● Reliable working condition
● Convenient repair and economic operation
● Widely used for mine, smelting, building material, road, railway, irrigation works
● Chemical and materials with compression strength no more than 320 Mpa.
●long working lifttime.
Technical Specifications
Type | Feed | Max. | Adjusting | Capacity | Rotation | Motor | Total | Dimensions |
PE-150*250 | 150*250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.6 | 720*660*850 |
PE-200*300 | 200*300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1 | 910*750*990 |
PE-200*350 | 200*350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.3 | 1000*870*990 |
PE-250*400 | 250*400 | 210 | 20-60 | 3-13 | 300 | 15 | 2.8 | 1300*1090*1270 |
PE-400*600 | 400*600 | 340 | 40-100 | 15-40 | 275 | 30 | 5.7 | 1730*1730*1630 |
PE-500*750 | 500*750 | 425 | 50-100 | 20-70 | 275 | 55 | 10.3 | 1980*2080*1870 |
PE-600*900 | 600*900 | 520 | 65-130 | 50-150 | 250 | 75 | 15.5 | 2290*2290*2400 |
PE-750*1060 | 750*1060 | 630 | 80-140 | 80-220 | 250 | 110 | 28 | 2660*2430*2800 |
PE-870*1060 | 870*1060 | 660 | 200-260 | 290-336 | 250 | 110 | 31.5 | 2810*2430*2800 |
PE-900*1060 | 900*1060 | 685 | 230-290 | 160-400 | 250 | 110 | 33 | 2870*2420*2940 |
PE-900*1200 | 900*1200 | 860 | 230-290 | 200-250 | 200 | 132 | 31 | 3380*2870*3330 |
PE-1000*1200 | 1000*1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 3480*3876*3330 |
PE-1200*1500 | 1200*1500 | 1100 | 350-360 | 250-400 | 180 | 160 | 51 | 4200*3300*3500 |
PEX-150*750 | 150*750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200*1530*1060 |
PEX-250*750 | 250*750 | 210 | 25-60 | 13-35 | 330 | 30 | 5.5 | 1380*1750*1540 |
PEX-250*1000 | 250*1000 | 210 | 25-60 | 16-52 | 330 | 37 | 7 | 1560*1950*1390 |
PEX-250*1200 | 250*1200 | 210 | 25-60 | 20-61 | 330 | 45 | 8.5 | 2140*1660*1500 |
PEX-300*1300 | 300*1300 | 250 | 20-90 | 16-105 | 300 | 75 | 11 | 2720*1950*1600 |
Application:
Primary crusher
Rock jaw crusher
Mini jaw crusher
Gold ore crusher jaw crusher
Stone jaw crusher
gold plant mining equipment
