Crushing and grinding equipment is an important equipment in mining and mineral processing. Their main function is to crush and grind the ore to the required particle size. The following are some common crushing and grinding equipment and their characteristics:
Crushing equipment
Jaw crusher
Working principle: Use the extrusion and bending of the two jaw plates to crush the material.
Features: Strong structure, suitable for coarse and medium crushing of materials of various hardness; large crushing force, high crushing ratio; convenient maintenance and good stability.

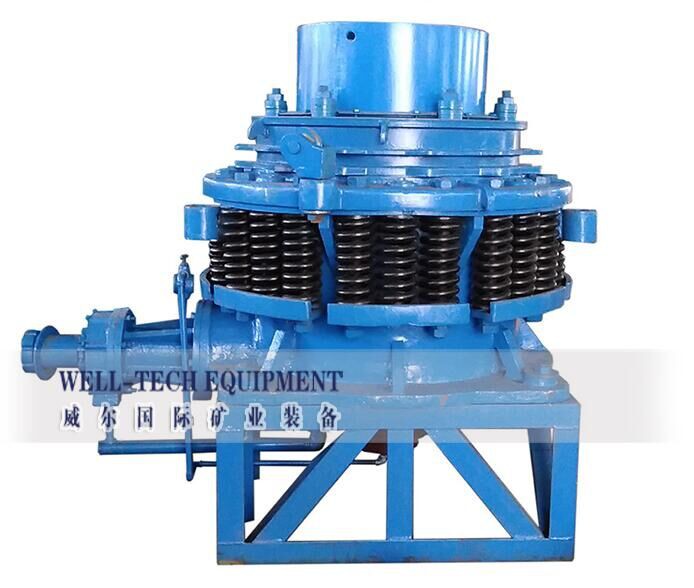

Cone crusher
Working principle: Adopting the lamination crushing principle, the material is squeezed and crushed through the conical crushing chamber.
Features: Suitable for medium and fine crushing operations, the crushed material has uniform particle size; the core components made of wear-resistant materials are durable; deeply integrated with intelligent technology, easy to operate and highly automated.
Hammer crusher
Working principle: Use the high-speed falling hammer to hit the ore on the grate bars at the bottom of the chassis, so that the ore is crushed to a suitable size.
Features: Suitable for crushing medium-hard materials; one-time forming, no need for secondary crushing; finished materials can be adjusted in size according to demand; high production capacity, large crushing ratio, low power consumption.
Impact crusher
Working principle: Use the high-speed impact of the plate hammer and the rebound effect of the impact plate to crush the material by repeated impact.
Features: Suitable for crushing medium-hard or brittle ores; large crushing ratio, complete discharging particle shape, multi-angle and multi-edge; the equipment itself has good sealing and good environmental performance; simple structure and easy maintenance.

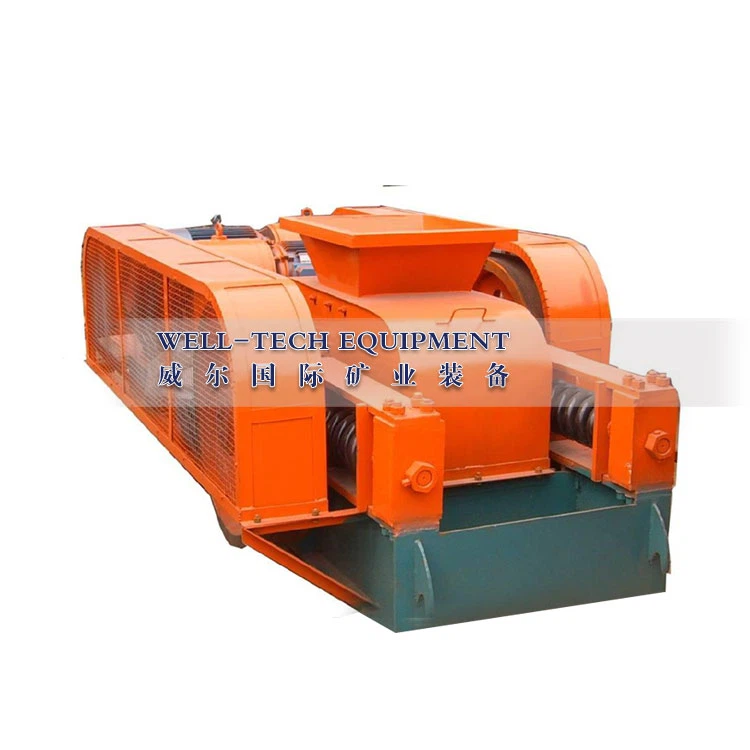

Double Roller crusher
Working principle: Use two rollers to move in opposite directions under the drive of the motor to squeeze and crush the material.
Features: Suitable for crushing materials with relatively low hardness; intelligent control system provides precise control and efficient crushing; uniform discharging particle size, low maintenance cost; good sealing design reduces dust leakage and meets environmental protection standards.
Grinding equipment
Grinding equipment is mainly used to further grind the crushed ore to the required particle size for subsequent mineral separation and extraction. Common grinding equipment includes ball mills, rod mills, autogenous mills, etc. These equipment achieve efficient grinding and particle size control of ore through different working principles and structural designs.

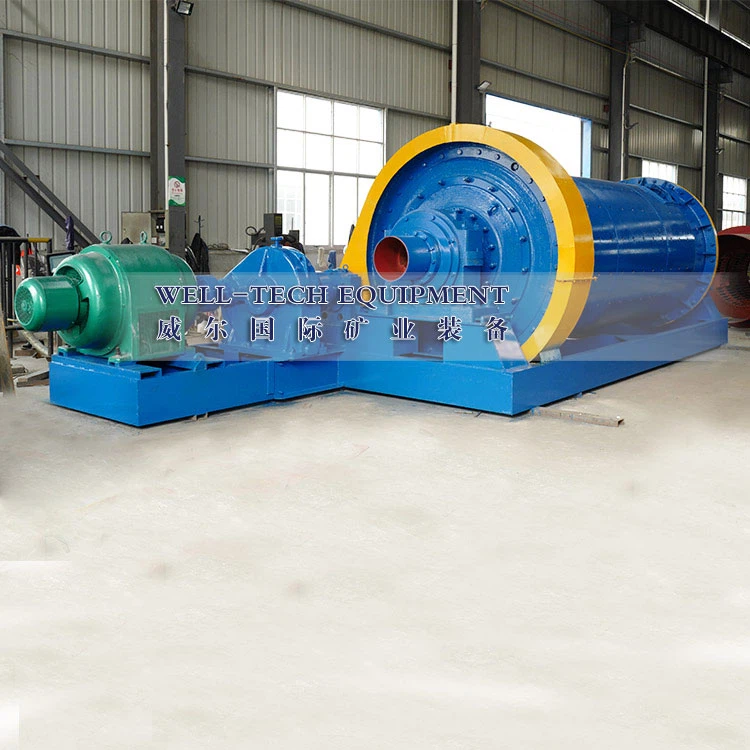

Ball mill
Ball mill is a mechanically driven grinding tool, usually used for selective and adaptive processing in one or more special materials. It is widely used in cement, silicate products, new building materials, refractory materials, fertilizers, ferrous and non-ferrous metal beneficiation, glass and ceramics and other production industries, for dry or wet grinding of various ores and other grindable materials. According to different classification standards, ball mills can be divided into the following categories:
Classification by discharge method: can be divided into two types: grid type and overflow type.
Classification by the shape of the grinding medium in the mill: can be divided into ball mill (grinding medium is mainly steel balls or steel segments), baseball mill (some chambers use cylindrical steel rods as grinding media) and gravel mill (grinding media are gravel, pebbles, porcelain balls and corundum balls, etc.).
Classification by cylinder shape: can be divided into short cylinder ball mill, long cylinder ball mill (when the aspect ratio is greater than 4, it is called a long mill or tube mill), tube mill and conical mill.
Classification by operation process: can be divided into dry mill and wet mill.
Classified by whether it is operated continuously: it can be divided into continuous mills and intermittent mills.
Classified by transmission mode: it can be divided into center drive mills and edge drive mills. The motor of the center drive mill drives the hollow shaft at the discharge end of the mill through the reducer to drive the mill body to rotate; the motor of the edge drive mill drives the large gear fixed on the cylinder at the discharge end through the reducer to drive the mill body to rotate.
Working principle
The working principle of the ball mill is to use the rotating cylinder to drive the internal grinding media (such as steel balls, steel rods, etc.) to drop and slide, thereby impacting and grinding the material to achieve material crushing. When the cylinder rotates, the grinding media is lifted and raised to a certain height, and then falls along a certain track due to its own gravity. In this process, the grinding media exerts a strong impact force on the ore in the cylinder. At the same time, due to the revolution and rotation of the grinding media along the axis of the cylinder in the cylinder, it will also produce extrusion and grinding forces on the ore between the grinding media and the contact area with the cylinder, thereby grinding the ore.
Structural composition
The ball mill is mainly composed of the following parts:
Feeding part
Used to load materials into the cylinder.
01
Main bearing
Supports the cylinder and allows it to rotate.
02
Cylinder
The part that contains grinding media and is used to grind the material. The cylinder is a long cylindrical shape, made of steel plate, and lined with a steel liner to fix and protect the cylinder.
03
Transmission part
Includes motor, reducer, large and small gear devices, etc., used to drive the cylinder to rotate.
04
Discharging part
Used to discharge the ground material from the cylinder.
05
