Washing screening machine
Washing and Screening Equipment refers to machinery used across various industries to clean (wash) and sort (screen) raw materials, enhancing their quality and preparing them for further processing. Here's a structured breakdown:
1.Washing Equipment Purpose: Removes impurities like dirt, clay, chemicals, or organic matter from materials (minerals, aggregates).
Types:
Log Washers: Use counter-rotating shafts and paddles for heavy clay or sticky soils.
Pressure Washers: High-pressure water jets for thorough cleaning.
Dewatering Screens: Remove excess water after washing.
Applications: Mining, construction (aggregate cleaning), recycling.

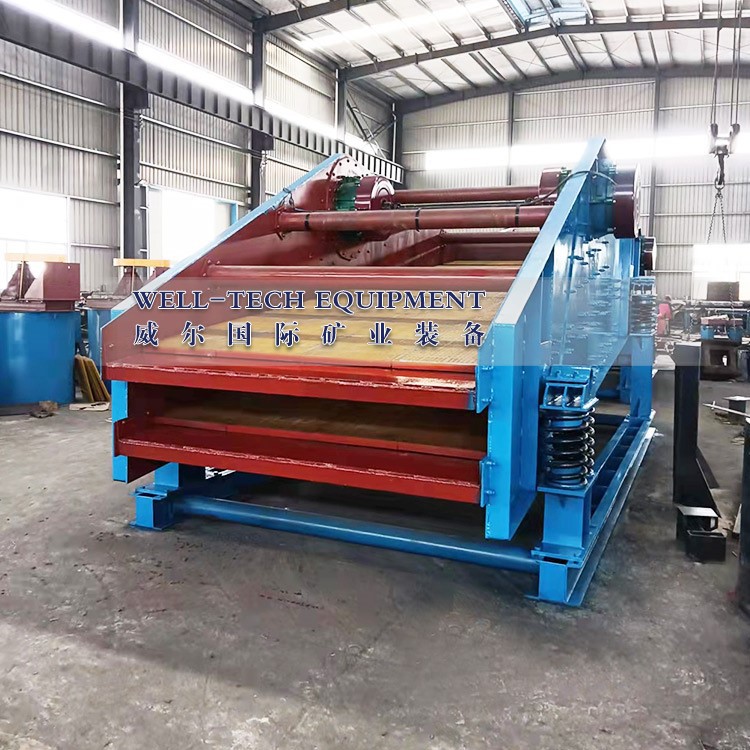

2. Screening Equipment Purpose: Sorts materials by size using mesh or perforated surfaces, ensuring uniformity.
Types:
Grizzly Screens: Heavy-duty bars for coarse screening of large rocks.
Applications: Mineral processing, construction (grading gravel/sand), recycling (sorting plastics/metals).
Key Industries & Uses
Mining/Construction: Prepares ores/aggregates by removing debris and sizing for sale or processing.
Design Considerations
Materials: Often corrosion-resistant (PU screen, stainless steel,High manganese steel woven net) for durability.
How trommel screen work
Feeding: Raw material (soil, aggregates, compost, municipal waste) is fed into the elevated end of the rotating drum.
Rotation: The drum rotates at a controlled speed (typically 10–20 RPM), causing smaller particles to pass through the screen openings.
Screening
Oversized Material: Larger particles that cannot pass through the screen openings exit at the drum’s lower end as "oversize."
Fines/Small Particles: Smaller particles fall through the screen into a collection system as "undersize."
Discharge: Separated fractions are collected for further processing or disposal.
How rotary scrubber work?
Feed Material Introduction:
Crushed rock, ore, sand, gravel, construction aggregates, or oil sands are introduced into the rotary scrubber.
The feed material can be of large size, as rotary scrubbers are designed to accept high-capacity and high-retention feeds.
Drum Rotation and Material Tumbling:
The cylindrical drum of the rotary scrubber rotates.
Internal lifters within the drum continuously lift and drop the feed material.
Abrasion and Scrubbing Action:
The continuous lifting and dropping action, combined with water, creates an abrasive and scrubbing effect.
This action helps to abrade, scrub, and break down soluble contaminants such as water-soluble clays, deleterious materials, and coatings from the feed material.
Separation and Dewatering:
Optional trommel screen extensions can be added to provide rough product separation, screening, and dewatering capabilities.
The cleaned material is then discharged from the rotary scrubber, while the contaminants are washed away.
The capacity of the rotary scrubber is determined by various factors, including the type of feed material, the percentage and type of waste material to be removed, screen analysis of the feed, available water, and specified retention time.
Retention time in a rotary scrubber can vary depending on the type and amount of contaminants present in the feed material.
Rotary scrubbers are primarily used for the removal of loam, light clays, and soft, soluble waste materials from aggregates, stone, and ore. They are not intended to replace log washers in applications where tough plastic clays are present, as these clays may pelletize through the tumbling action and not be effectively removed.
In summary, rotary scrubbers work by using a cylindrical drum with internal lifters to continuously lift and drop feed material, combined with water, to abrade, scrub, and break down soluble contaminants. The cleaned material is then discharged, while contaminants are washed away, providing a cleaner product for further processing or use.
