NG Peripheral Driving Thickener
Brief Introduction

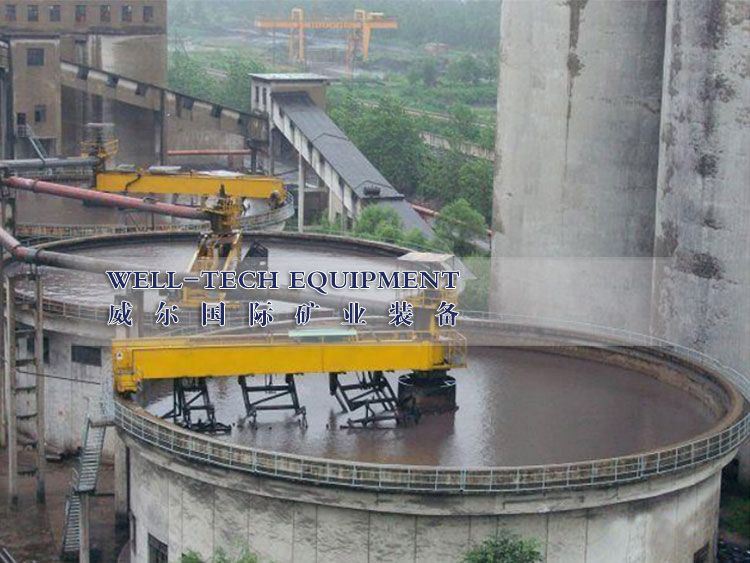

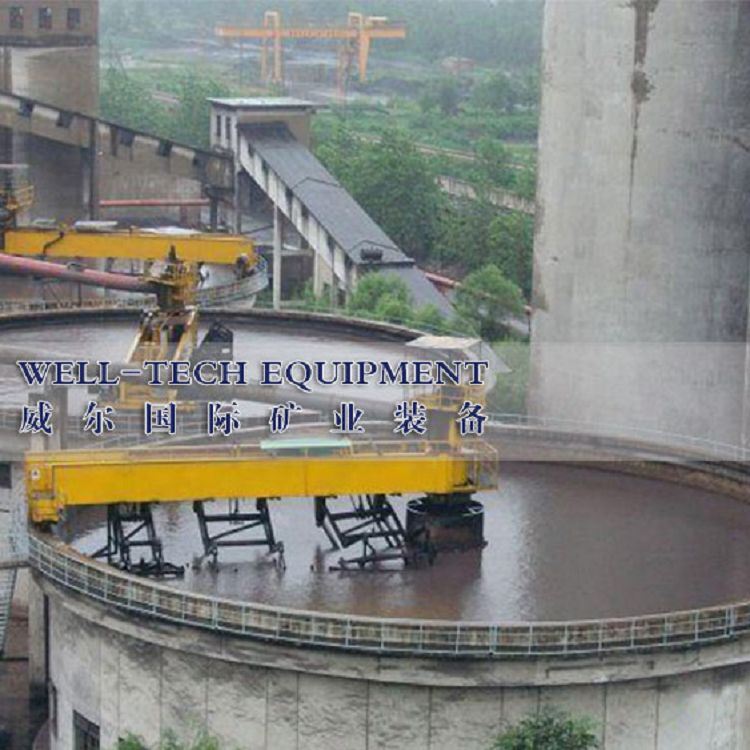

The NG thickener is a kind of peripheral driving thickener with roll wheel. It’s usually adopted by large-scale thickener. In the event of skidding of running roller due to overloading, no special safety device is required. Generally, the pool is concrete structure. In order to charge motor, annular nodes is fixed in central support. The current collection joins with sling ring are connected with the arm brace, and the current is introduced to the motor though these joints by the cable laid on the are brace.
Remark
● The roller has small friction, if the track is frozen or overload, the roller is sliding, so it is not suitable for cold regions and large amount of high concentration ore pulp
● Steel pool an be provided according to users requirements
Main Technical Parameters
Model | Thickening Tank Diameter (mm) | Thickening Tank Depth (mm) | Capacity (t/d) | Sedimental Area (m2) | Motor Model | Motor Power (KW) | Weight (t) |
NG-15 | 15000 | 3500 | 390 | 177 | Y132M2-6 | 5.5 | 9120 |
NG-18 | 18000 | 3500 | 560 | 255 | Y132M2-6 | 5.5 | 10564 |
NG-24 | 24000 | 3400 | 1000 | 452 | Y160M-6 | 7.5 | 24000 |
NG-30 | 30000 | 3940 | 1560 | 707 | Y160M-6 | 7.5 | 26420 |
NG-45 | 45000 | 5060 | 2400 | 1590 | Y160L-6 | 11 | 50640 |
NG-53 | 53000 | 5070 | 3000 | 2206 | Y160L-6 | 11 | 60910 |
