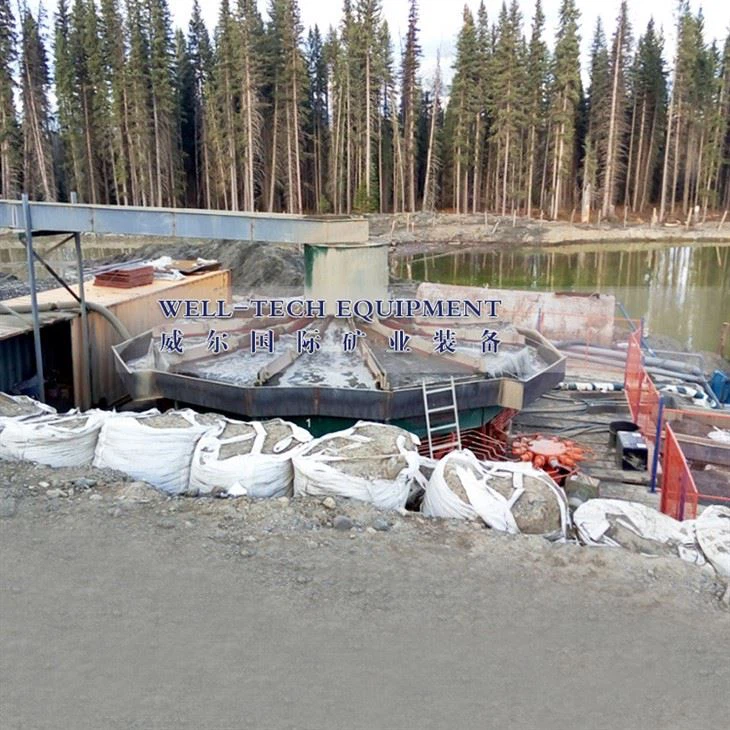

Hydraulic Radial Jig machine
Descriptions
Hydraulic Radial Jig Machine is developed from a circular jig, and its main structure is the main transmission mechanism, jig tank, feeding trough, screen, rubber discharge pipe, rubber diaphragm, electrical control cabinet and hydraulic pump station. Our product uses electromagnetic speed-adjusting asynchronous motors to achieve frequency adjustment, which is stepless adjustment. The jigging frequency can be adjusted in the range of 0-90 times per minute. It has a wide range of applications and strong adaptability. It is used to sort ores such as diamond and hematite.
Hydraulic beneficiation jig machine is a piece of equipment specially used for the ore beneficiation process. It combines mechanical, electronic and hydraulic technology to achieve efficient and precise ore sorting. Hydraulic mineral processing jig has a wide range of applications in the field of mineral processing, and is especially suitable for processing ores of various particle sizes and properties.
The main advantages of hydraulic mineral processing jig separator include:
Efficient sorting: Through the precise hydraulic control system, efficient sorting of ore particles is achieved, improving mineral processing efficiency and output.
Energy saving and environmental protection: The hydraulic mineral processing jig uses an advanced hydraulic transmission system, which has low energy consumption and emissions and meets environmental protection requirements.
Strong adaptability: The hydraulic mineral processing jig can handle ores of different particle sizes and properties, and has strong adaptability and flexibility.
High degree of automation: Adopt advanced control system to realize automated operation and monitoring, reduce labor costs and improve production efficiency.
Hydraulic beneficiation jig machine has a wide range of applications, including the beneficiation process of various ores such as gold ore, iron ore, copper ore, lead-zinc ore, etc. In mineral processing plants, hydraulic mineral processing jigs are usually used in conjunction with other mineral processing equipment to form a complete mineral processing production line to achieve efficient and accurate separation of ores.
In short, the hydraulic mineral processing jig is an advanced mineral processing equipment with the advantages of high efficiency, energy saving, environmental protection, strong adaptability and high degree of automation. It is widely used in the mineral processing process of various ores.
Application
Hydraulic Radial Jig Machine has a very wide range of uses and is used to process various particle size mineral raw materials. For metal ores, it is a method for processing coarse, medium and fine-grained iron ores and manganese ores, and is used in large quantities for the separation of tin and tungsten ores; for the separation of lead-zinc oxide ores, it also has a good effect.
Advantages and Characteristics
● It has compact structure, large jigging area and large capacity, which is beneficial to the recovery of fine-grained materials.
● Our equipment is hydraulically driven, and the transmission mechanism is simplified to save power.
● It has centralized feeding and small distribution space. It is suitable for dredgers, and its pulsation curve is similar to a sawtooth curve, which is not only beneficial to the recovery of small and heavy minerals, but also saves a lot of supply water.
● It is easy to install, operate and maintain, and can achieve good results in the processing of placer gold, tungsten, tin, hematite, manganese, barite, gemstones, etc.
● Compared with conventional jigging machines, our products are more energy-saving, with a total power of only 11.6Kw, which saves about 55%.
● The pulsation speed very easily adjusted by the regulator.
Technical Specifications
Model | DYTA 7750-3 | DYTA 7750-4 | DYTA 7750-5 | DYTA 7750-6 | DYTA 7750-7 | DYTA 7750-8 | DYTA 7750-9 | DYTA 7750-10 | DYTA 7750-11 | DYTA 7750-12 |
Jigging area (m3) | 9.9 | 13.2 | 16.5 | 19.8 | 23.1 | 26.4 | 29.7 | 33 | 36.3 | 39.6 |
Stroke (mm) | 20. 25. 30 | |||||||||
Frequency of stroke (r/min) | 50-85 | |||||||||
Feeding size (mm) | ＜25 | |||||||||
Make-up water (m3/t) | 1-3m3/ton of ore | |||||||||
Make-up water pressure (MPa) | ≥0.10 | |||||||||
Capacity (t/h) | 50-75 | 66-100 | 78-125 | 100-150 | 116-175 | 132-197 | 150-200 | 166-245 | 182-270 | 200-300 |
Driving motor (Kw) | 5.5 | 7.5 | 7.5 | 7.5 | 11 | 11 | 11 | 15 | 15 | 15 |
hydraulic power unit (Kw) | 0.55 | |||||||||
Weight (kg) | 6000 | 8000 | 10000 | 12500 | 14200 | 15800 | 17500 | 18000 | 19200 | 21000 |
Processing details and application
 |  |
| Gold production process | Circular Jig machine |
Tin Jig separator
Hydraulic Radial Jig machine/concentrator
Alluvial gold plant complete set plant mining equipment
Circular jig machine on dredge
