Jiangxi Well-tech International Mining Equipment Co., Ltd. is one of the leading manufacturers and suppliers of double layer shaking table in China, also supports customized service. Please feel free to wholesale durable double layer shaking table for sale here from our factory. For price consultation, contact us.

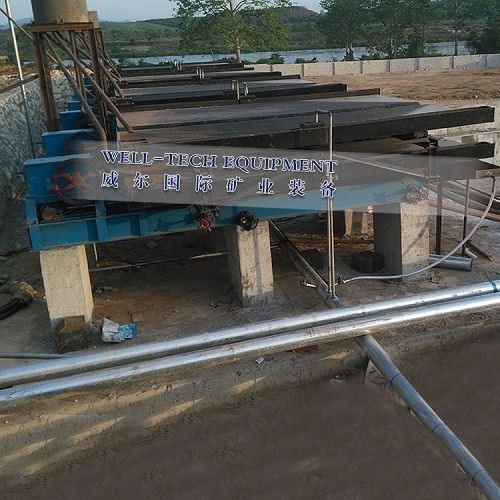

Double-deck shaking table

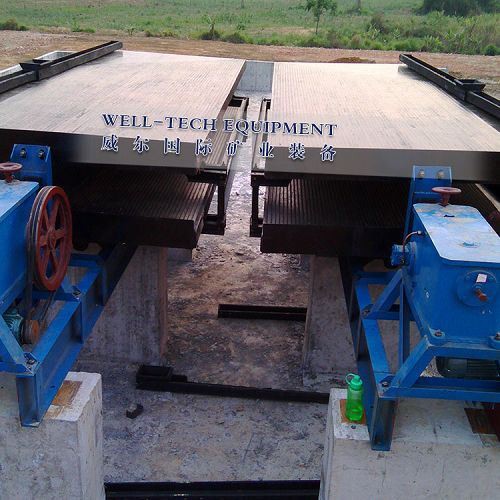

Double deck shaking table (2)

Descriptions

Double Layer Shaking Table is a gravity beneficiation equipment, suitable for separating gold, tungsten, iron, manganese and other metal minerals. Our product is made of high-quality raw materials, with high sorting accuracy, simple operation, easy maintenance, and high cost performance.

Double Layer Shaking Table is solid and durable as a whole, and is not easy to wear. It is often made with mature technology and conforms to the principles of mechanical design. Compared with the traditional shaker, it occupies a small area, is low in cost, has various operations, and can sort coarse sand, fine sand, sludge, etc. Our Double Layer Shaking Table is produced in strict accordance with standards, and is trustworthy in terms of quality and performance, and customers can rest assured to choose.

shaker table

Double deck Technical Specifications

Model	Unit	DL4500/1850
Deck Size	mm	Each deck 4500/1850/1560
Stroke	mm	6-8
Frequency of stroke	/min	240-380
Slope	o	0-10
Feed size	mm	0.02-2
Feed density	%	10-30
Water	t/h	0.8-1.4
Power	kw	1.5
Capacity	t/h	2 (coarse sand)
	t/h	1(find sand)
	t/h	0.6-1
Overall dimensions	mm	5600/1850/1560
Weight	kg	1650
