Jiangxi Well-tech International Mining Equipment Co., Ltd. is one of the leading manufacturers and suppliers of circular vibrating screen in China, also supports customized service. Please feel free to wholesale durable circular vibrating screen for sale here from our factory. For price consultation, contact us.

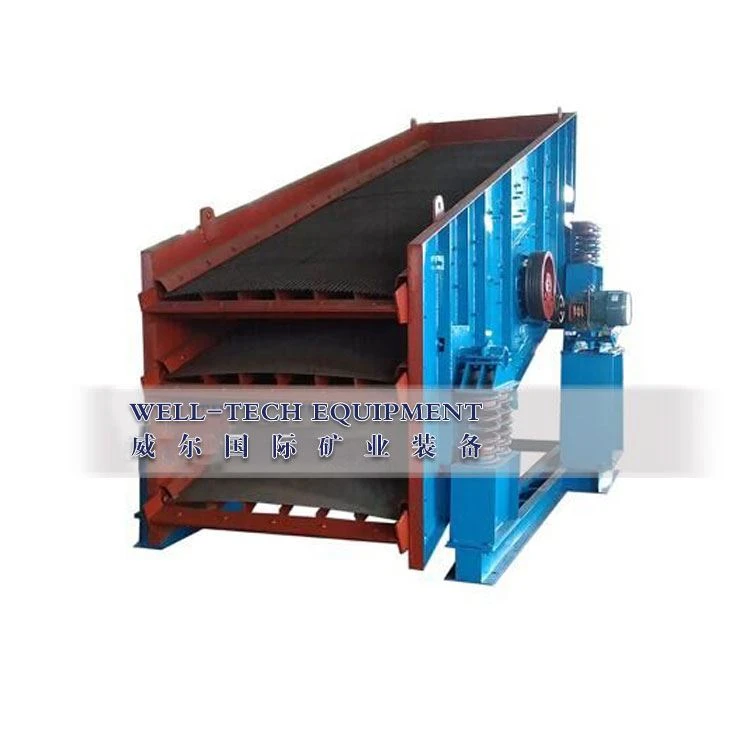

Circular vibrating screen
Description
Name:YK Circrlar vibrating screen/screening equipment
vibrational trajectory:an ellipsefor.
Application:Mineral processing, building materials, electricity and chemical departments for product classification.
Advantages and Characteristics
1: Novel structure, large capacity, high screening efficiency
2: Adopt cylinder type of eccentric shaft vibration exciter and an eccentric block for amplitude adjustment, easy to use and maintain.
3: Adopt tire coupling, soft connection makes operation smooth.
4: Adopt high manganese steel woven screen or punched screen plate or Pu screen, long useful life and no plugging
5: Long life, quiet, smooth resonance region.

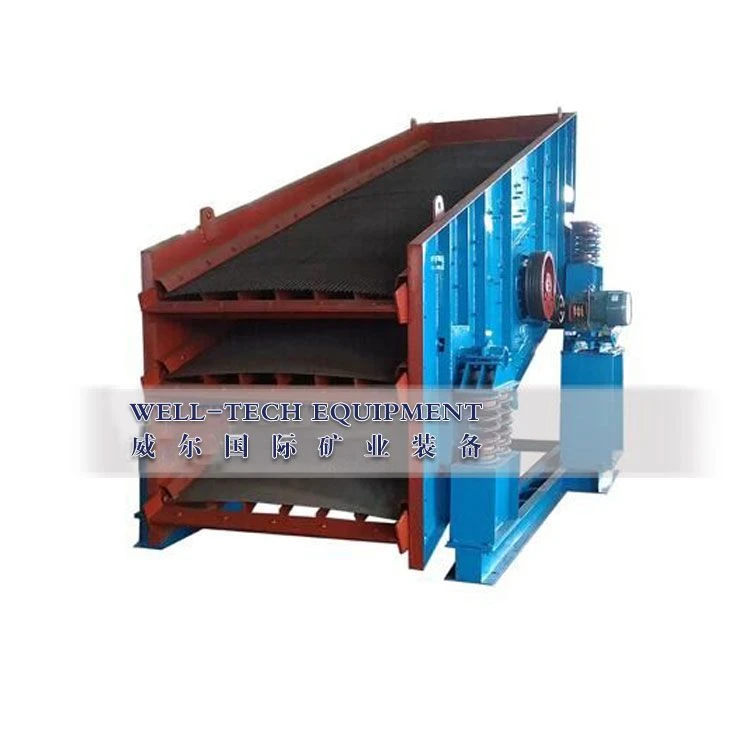

YK circular vibrating screen
Main Technical Parameters
Model | Layer | Sieve size (mm) | Max. Feeding size (mm) | Amplitude (mm) | Angle (°) | Capacity (t/h) | Power (Kw) |
3YK1230 | 3 | 3-50 | < 200 | 800-970 | 20 | 12-120 | 5.5 |
3YK1336 | 3 | 6-50 | < 200 | 970 | 20 | 15-160 | 11 |
3YK1548 | 3 | 5-80 | < 200 | 970 | 20 | 50-250 | 15 |
3YK1848 | 3 | 5-80 | < 200 | 970 | 20 | 50-300 | 18.5 |
3YK1860 | 3 | 5-80 | < 200 | 970 | 20 | 50-350 | 22 |
3YK2160 | 3 | 5-100 | < 200 | 730 | 20 | 100-500 | 30 |
3YK2460 | 3 | 5-150 | < 200 | 730 | 20 | 150-700 | 30 |
3YK2770 | 3 | 5-150 | < 200 | 730 | 20 | 200-800 | 30*2 |
4YK1548 | 4 | 5-80 | < 200 | 970 | 20 | 50-250 | 18.5 |
4YK1848 | 4 | 5-80 | < 200 | 970 | 20 | 50-300 | 22 |
4YK1860 | 4 | 5-80 | < 200 | 970 | 20 | 50-350 | 22 |
4YK2160 | 4 | 5-100 | < 200 | 730 | 20 | 100-500 | 30 |
4YK2460 | 4 | 5-150 | < 200 | 730 | 20 | 150-700 | 37 |
4YK2770 | 4 | 5-150 | < 200 | 730 | 20 | 200-800 | 30*2 |
Application:

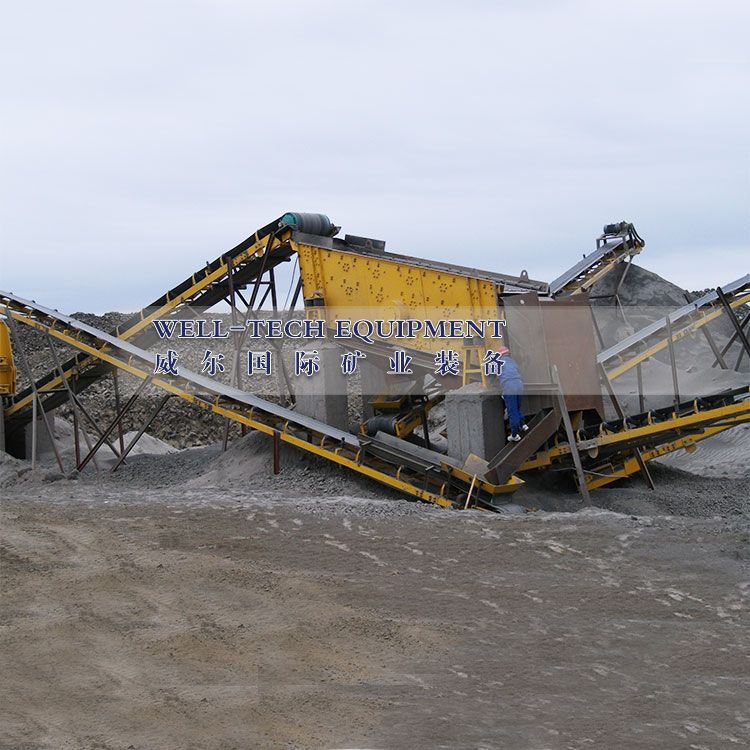

Stone screening in quarry

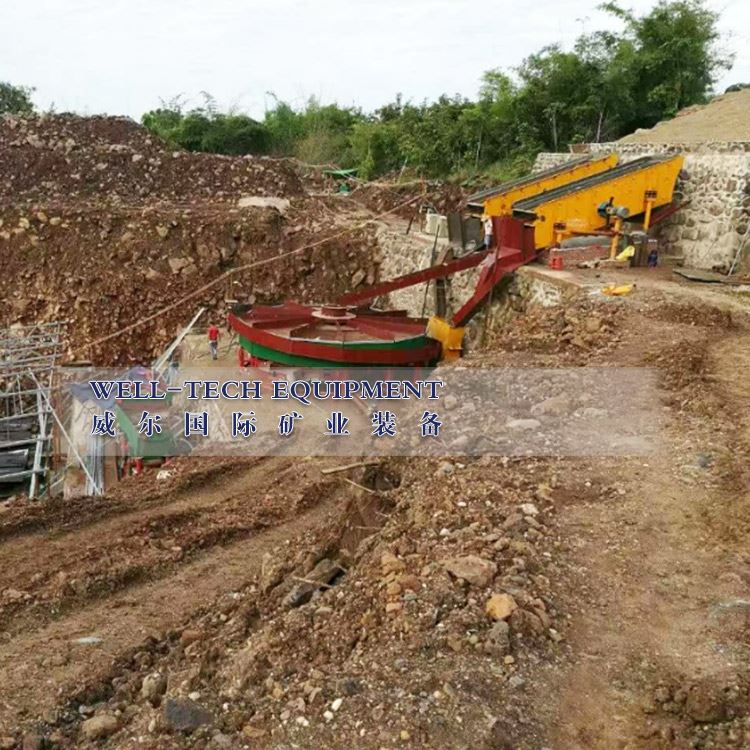

Placer gold plant
