Single Layer Shaking Table
video
Single Layer Shaking Table

Single Layer Shaking Table

Nmae:gravity separator, shaking table,table concentrator,shaker table,wet vibration table.mineral separator. Application: shaking table for separation Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum,etc.shaker table is good for separation fine minerals. Working principle:shaking table working according to minerals specific gravity difference for separation. heavy minerals as concentrate,light minerals as tailing. Capacity: Around 0.3-1tph. Max feeding size:2mm Deck type:Single layer/double layer/ 3 deck/4deck table From where:China JiangXi Well-tech International Mining Equipment Co.,Ltd
Send Inquiry

Product Introduction

Jiangxi Well-tech International Mining Equipment Co., Ltd. is one of the leading manufacturers and suppliers of single layer shaking table in China, also supports customized service. Please feel free to wholesale durable single layer shaking table for sale here from our factory. For price consultation, contact us.



Single layer shaking table/6-S Shaking Table

gold shaking table

Gravity Separation 6-S Shaking Table

Nmae:gravity separator, shaking table,table concentrator,shaker table,wet vibration table.mineral separator.

Application: shaking table for  separation Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum,etc.shaker table is good for separation fine minerals.

Working principle:shaking table working according to minerals specific gravity difference for separation.Heavy minerals as concentrate,light minerals as tailing.it no need add any chemical,Just need water for washing.

Capacity: Around 0.3-1tph.

Max feeding size:2mm

Deck type:Single layer/double layer/ 3 deck/4deck table

From where:China JiangXi Well-tech International Mining Equipment Co.,Ltd

gold shaking table working principle/shaking table how to work:

Put the raw materials into the material slot, the rear one is water washing slot.and put some water to make it into slurry of concentration of 20% to 25%, flow to the deck by gravity. because of the rinsing of water and vibration of the deck in the deck riffle. The particle group become loose and layered After the layered, the heavy minerals and the light minerals move in different direction because of the different pressure of flowing water and the friction of the bed surface. because of the strong flowing water,The light minerals moves downward along the transverse of bed surface. This side called tailing side. as tailing threw away. The heavy minerals which located in the bottom of bed layer was influenced by different movement of bed surface, and this part move to the opposite of the drive end, we call it concentrate side as concentrate minerals. Because of the different specific gravity, partilce size, and the directions of moving, the groups of mineral particles spread in Fan-shaped along the diagonal of the  . The production discharge along the material slot of deck, the discharge line is so long, so that shaking table can precise get several kinds of different quality minerals.



The best advantage of shaking table is separating precisely, We can get  1 or 2 kinds of middling product,some final concentrate and final tailings, after the first step recovery from raw mineral. we can get high enrichment ratio of concentrate,When processing low grade gold ore,lead zinc ore, tungsten ore and tin ore, the recovery ratio could achieve about 300 times. the feeding size is from 0.022mm to 2mm.

shaking table





shaker table Features

● High recovery ratio

● High concentration ratio

● Easy to installation

● Simple operation

● Deck constructed of fiber glass

● Seven different decks as options.and Single layer/double layer/ 3 deck/4deck table as options.

● Long lifetime.

● low invest.

gold separation table

Shaking table Construction



Wet vibrating shaking table Mechanical features

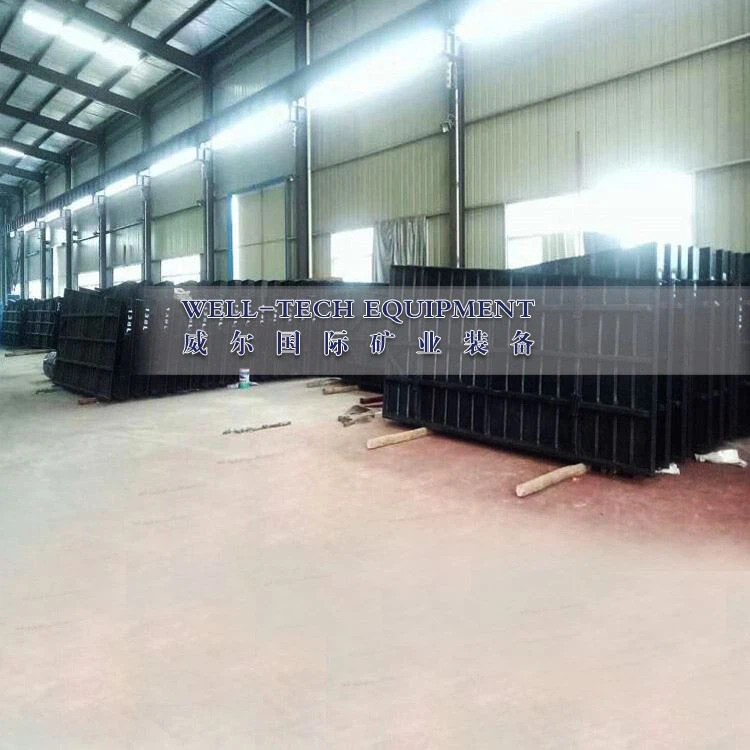

Decks: The decks are constructed of steel framework and covered 16mm fiberglass with emery, The fiberglass cover its strength reaches as high as 70% of steel, The features of this design is more stronger, wear-resistant,corrosion-resistant,and No deformation,the more longer working-life.And it can use on different mineral and different weather condition.

shaking table (2)

Transmission:  Shaking tables are furnished with a totally enclosed self-oiling head motion of heavy cast iron,It contain an oil reservoir for perfect splash lubrication.This feature protects the moving parts, reducing operating and maintenance costs to minimum.



transmission of shaking table

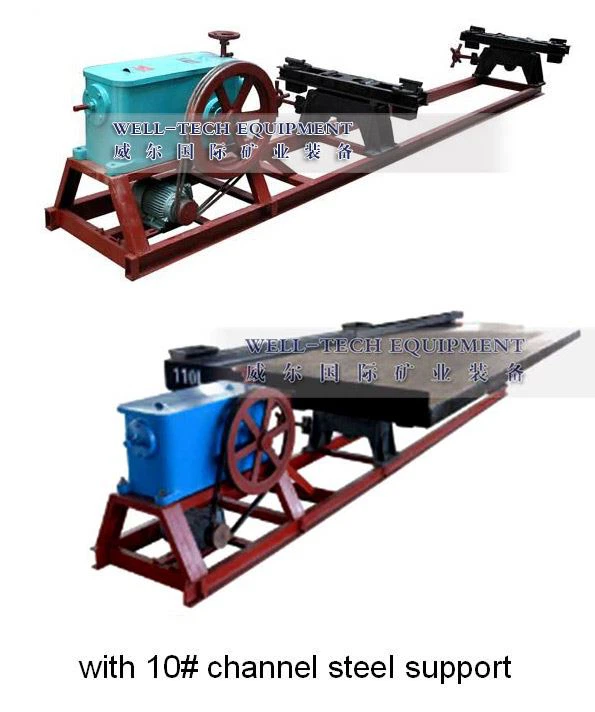

Support types: Traditionary type, 10# small channel steel support ,20# big channel steel support

01(4)

 Fearture:

It does not need the cement to bury the foot bolt in advance.

installs and uses quickly.

Is easy to disassemble.

It can move.

The cost is relatively inexpensive.



shaking table (3)

                                With 28# channel steel support

Feature:

No need the cement to bury the foot bolt in advance.

Installs and uses quickly.

It easy to disassemble.

It can portable.

Material slot and water slot

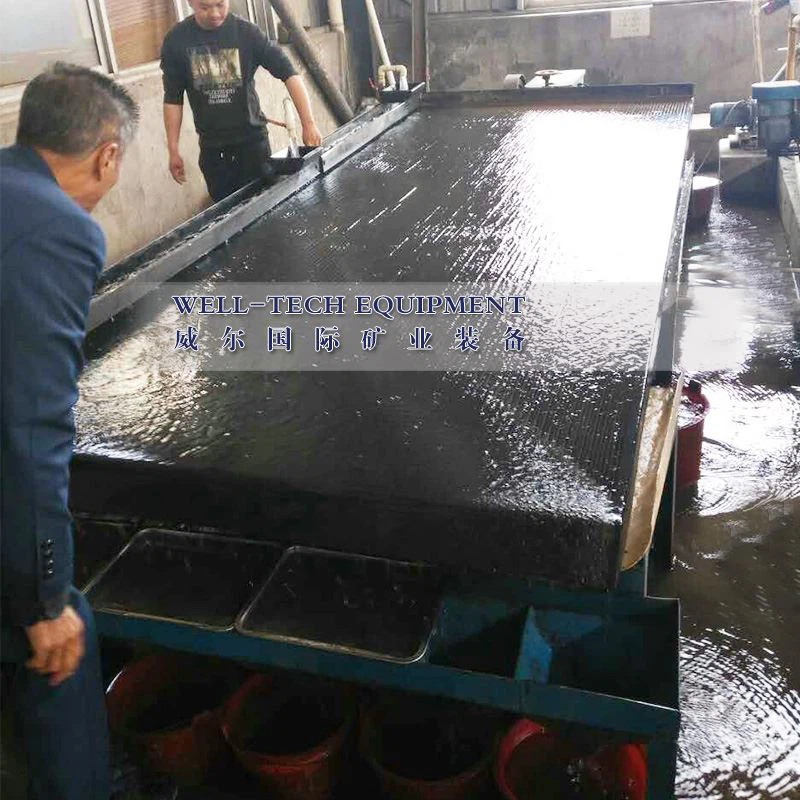

gold shaking table (2)

Mineral separator shaking table technical Specification

JiangXi Well-tech International Mining Equipment Co.,Ltd 6S Shaking Tables have three different type deck.The coarse ore deck is designed for recovering particles size from 0.5 mm to 2 mm coarse size;Recovering fine particles in the range of 0.074 mm to 0.5 mm can use fine sand deck; Recovering super extremely fine particles in the range of 0.02 mm to 0.074 mm can use the slime deck.



Model

6-S 7.6

6-S 4.08

6-S 1.95

6-S 0.5

Deck type

Coarse ore Deck

Fine sand
Deck

Slime Deck

Three different kinds of decks are available

Beneficiation area (m2)

7.6

7.6

7.6

4.08

1.95

0.5

Deck Size

Length (mm)

4500

4500

4500

3000

2100

1100

Transmission end width (mm)

1850

1850

1850

1320

1050

500

Concentrate end width (mm)

1550

1550

1550

1100

850

430

Maximum feeding size (mm)

2

0.5

0.074

Sand -2
Slime -0.1

Sand -2
Slime -0.074

Sand -2
Slime -0.074

Capacity (t/h)

1-1.2

0.5-1

0.3-0.5

0.4-1.0

0.3-0.8

0.05-0.2

Feeding density (%)

20-30

18-25

15-20

10-30

Stroke (mm)

16-22

11-16

8-16

6-30

12-28

9-17

Frequency of stroke (r/min)

220

250

280

210-320

250-450

280-460

Water consumption (t/h)

0.7-1

0.4-0.7

0.4-0.7

0.3-1.5

0.2-1

0.1-0.5

Groove shape of deck

Rectangular

Saw-tooth

Triangle

Available Rectangular, Saw-tooth, Triangle

Power (Kw)

1.1

1.1

1.1

1.1

1.1

0.55



Table and Steel Support Types

Tables are offered in left or right-hand

Tables are offered in left or right-hand                                                              Table riffle configurations



Processing Details



Shaking table Processing details.jpg

The deck is constructed of steel framework and covered 16mm fiberglass with hard emery, the features of this design are stronger, wear-resistant, corrosion-resistant, and no distortion.

7Kinds of decks type for choose

Shaking table Processing

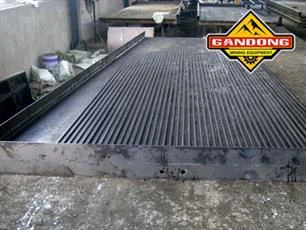

7Kinds of decks type as option

Foot of shaking table

Foot of shaking table

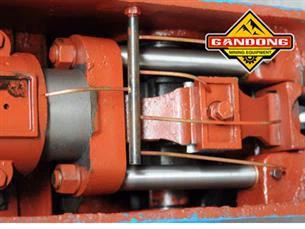

Tranismission: the gear box contains a self-oiling pump for perfect splash lubrication, it protects the moving parts, reducing operating and keeps maintenance costs to a minimum.

gear box





Applications

ilmenite plant in Ghana   gravity separator.jpg
ilmenite plant in Ghana   Zircon plant in Philippines

ilmenite-zircon-plant-in-Somalia   Tungsten-plant-in-Vietnam
ilmenite/zircon plant in Somalia   Tungsten plant in Vietnam

Gold plant in Philippines_   Tin plant in China
Gold plant in Philippines   Tin plant in China

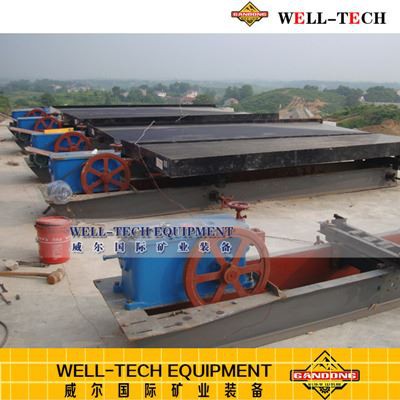

Gold plant in Ghana_   Tantalum niobium Tin plan in Nigeria_
Gold plant in Ghana   Tantalum/niobium/Tin plan in Nigeria

Gold and diamond plant in Liberia_   Alluvial gold plant in PNG_
Gold and diamond plant in Liberia   Alluvial gold plant in PNG



The 6-S shaking table is widely used for roughing, cleaning, and scavenging in the processing of gold, tungsten, tin, tantalum-niobium, chromite, titanium-zirconium, and manganese-bismuth ores. It serves as standard equipment for the cleaning stage in small and medium-sized mineral processing plants. Featuring a floor-mounted design, it is easy to maintain and utilizes highly interchangeable spare parts.

new type Paint Another color shaking table_

Paint Another color shaking table

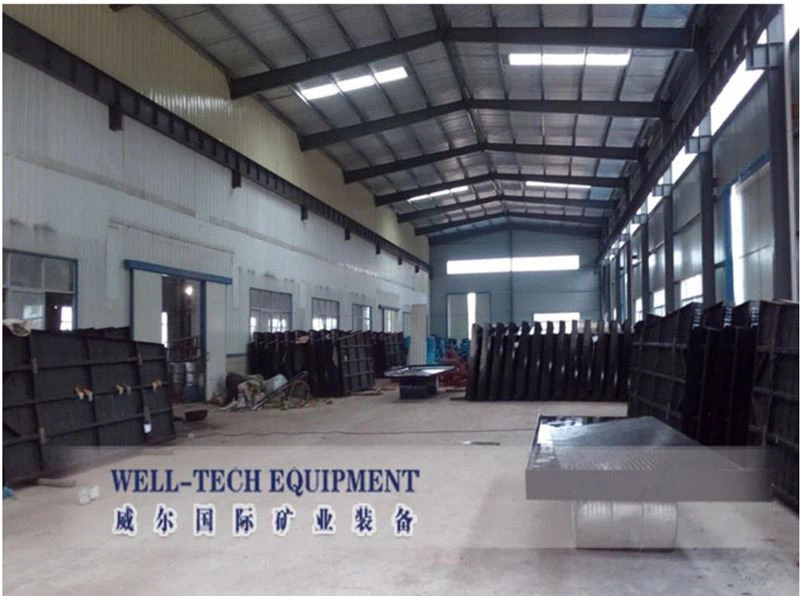

Shaking table workshop_

Shaking table workshop

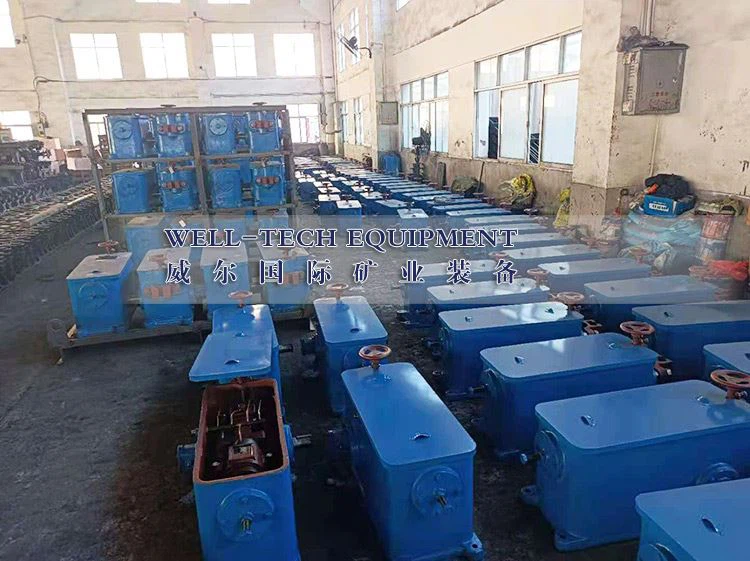

transmission of shaking table

                                    Head/Transmission components

About us:

Jiangxi Well-tech International Mining Equipment Co.,Ltd. (Gandong Mining Equipment) is a large mineral processing service company specialized in designing, manufacturing, installing and debugging of mining equipment as well as providing flow sheet design and course training of mineral processing. Now our company is the largest manufacturer and exporter of gravity dressing equipment in China. Our company covers an area of 48,000 square meters, the workshop covers 20,000 square meters, we have various large modernized machinery process facilities, professional engineering team and installation team. We are moving towards company collectivization to achieve.

Because of excellent performance of our products and professional after-sale service, our gravity mining machine, flotation machine, classification machine, screening machine are known both in China and abroad, which gravity mining machine has a 15% market share in China. Meanwhile, we adhere to international development strategies, according to the market demands and the feature of our products, continuously to strengthen up development of international market. Now our products have been exported to over 50 countries, such as USA, England, Australia, Brazil, Turkey, Italy, Russia, South Africa, Zimbabwe, Sudan, Ghana, Congo, Morocco, India, Indonesia, Malaysia, Philippines, North Korea, Mongolia, Vietnam, Thailand etc.

JiangXi Well Tech mining equipment (2)

product-1-1

product-1-1

company honor

FAQ:

Q:what's the capacity of each deck?

A:Each deck capacity is about 0.3-1tph.

Q:what's the feeding size to shaking table?

A:The max feeding size is 2mm.

Q:How many kind of deck type?

A:Coarse ore deck(46#),Fine sand deck(60#,88#),Slime deck(110#,120#138#).

Please provide your feeding size,then we will advice you most suitable deck type.

Q:Are you factory or trade company?

A:our company is the biggest manufacturer of gravity separator machine in China.we have 6 modem workshops,1sample test workshop,1office building.

Q:If your company can provide whole line machine?

A:Yes,From crushing or washing to get final products.

Q:What's capacity you can provide?

A:All machine can customization,we can provide from 1t/h-300t/h.

Q:If can arrange engineer come to worksite for installation?

A:Yes.
