Jiangxi Well-tech International Mining Equipment Co., Ltd. is one of the leading manufacturers and suppliers of arc plate electrostatic separator in China, also supports customized service. Please feel free to wholesale durable arc plate electrostatic separator for sale here from our factory. For price consultation, contact us.

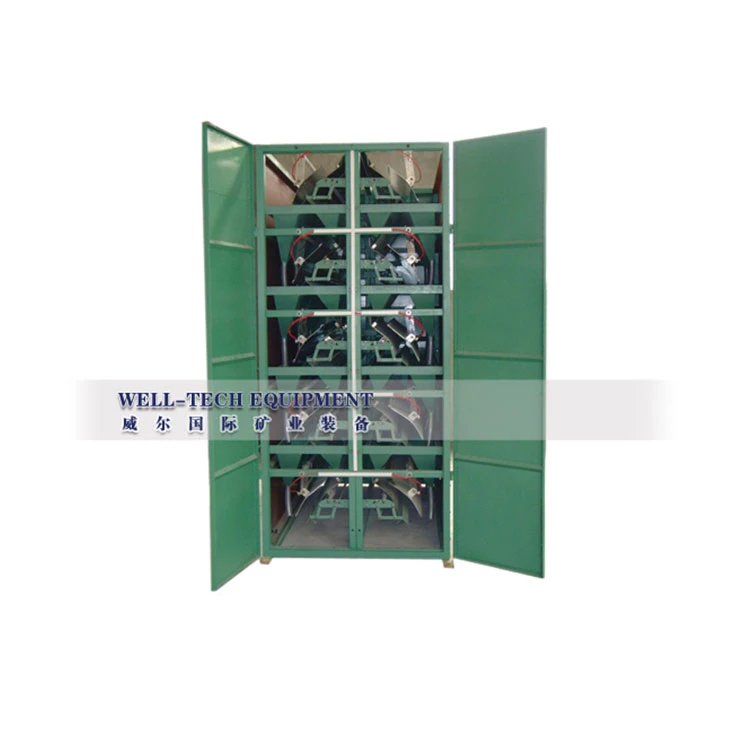

Arc Plate Electrostatic Separator
Description:
This machine performs separation under the electric intensity and gravity force based on the difference of minerals in their conductivity and the variation of electrostatic force applied on these minerals when they pass through the electric field. It is suitable to separation of conductive mineral and non-conductive mineral, thus to obtain high-grade conductive concentrates and non-conductive concentrates, e.g. rutile ore and zircon ore. It may be used in combination with single-disc separator, double-disc separator, permanent magnetic separator and electromagnetic separator. This machine is equipped with 0-45000V high-voltage generator, so that it can also be used for separating the high-phosphorus ore or rutile ore that is difficult to separate.
Main Technical Parameters
Model | BXJ-2A4-30 | BXJ-2A5-60 |
Capacity | 1-2T/H | 1-2T/H |
Feeding size | 0.1-3mm | 0.1-3mm |
Feeding speed | 10-15cm/s | 10-15cm/s |
Arc-Plate size | 1600 | 1600 |
Power consumption | 125W | |
Operation voltage | 0-60KV | 0-60KV |
High voltage current | 0-10MA | 0-10MA |
Machine weight | 1688KG | 2100KG |
Overall size | 2100*1600*2300mm | 2100*1600*2500mm |
Application:
Electrostatic separator quartz
