How to Improve Chrome Ore (Chromite) Recovery Rate

Chromite recovery loss mainly comes from insufficient mineral liberation, over-grinding fine slime, mismatched separation equipment, unoptimized flowcharts, and unrecovered middlings/tailings. Below are systematic, practical improvement measures by processing stage.

1. Optimize Crushing & Grinding: Maximize Liberation, Avoid Over-Milling

(1) Multi-stage layered crushing

Use Jaw Crusher (coarse crush) + Cone Crusher (medium/fine crush) instead of single impact crushing; layered crushing produces uniform particle size and reduces over-crushing by ~20%.

Add trommel scrubber washing for clay-rich ore to strip slime coating on chromite grains, eliminating separation interference.

(2) Stage grinding + closed-circuit classification (core upgrade)

Adopt coarse grind → rough separation → regrind middling → cleaning separation instead of one-time full grinding:

Coarse grind (rod mill) to -0.5 mm (60% passing); spiral/ cyclone classification, rough gravity separation to discard 30–40% low-grade tailings (Cr₂O₃ <1.5%).

Only high-grade rough concentrate enters secondary fine grinding to -0.074 mm (85% passing) for full liberation.

Benefit: Cut total grinding power consumption by ~25% and sharply reduce ultra-fine chromite (<0.03 mm) loss.

(3) Replace ball mill pre-grind with High Pressure Grinding Roller (HPGR)

HPGR fractures ore along mineral grain boundaries with pressure 4.5–6.0 N/mm², boosting liberation while lowering over-grinding rate by 40–60% and energy use by 25–35%.

2. Precise Particle Classification & Split-Grade Separation

Uneven particle sizes severely lower gravity/magnetic separation efficiency. Split feed into 3 narrow fractions via hydrocyclone + high-frequency fine screen:

Coarse fraction (+0.074 mm): Spiral concentrator / jig roughing

Medium fraction (-0.074 ~ -0.038 mm): Shaking table / wet high-intensity magnetic separation (WHIMS)

Micro-fine fraction (-0.038 mm): Centrifugal gravity separator or flotation recovery.

Critical pre-step: Deslime ahead of spiral concentrators to stop slime from diluting heavy chromite settling.

3. Upgrade Separation Equipment & Combined Flowsheet (Most Widely Used: Gravity + Magnetic + Flotation)

Chromite's high density (4.1–4.7 g/cm³ vs gangue 2.7–3.2 g/cm³) and weak magnetism define the combined process framework.

(1) Gravity separation (main bulk recovery)

Coarse ore (2–20 mm): Jig machine, recovery >80%

Medium-fine (0.02–0.3 mm): Spiral concentrator for roughing, shaking table for cleaning (lift Cr₂O₃ grade by 15–25%)

Micro-fine lost tailings: Centrifugal gravity concentrator recovers escaped fine chromite.

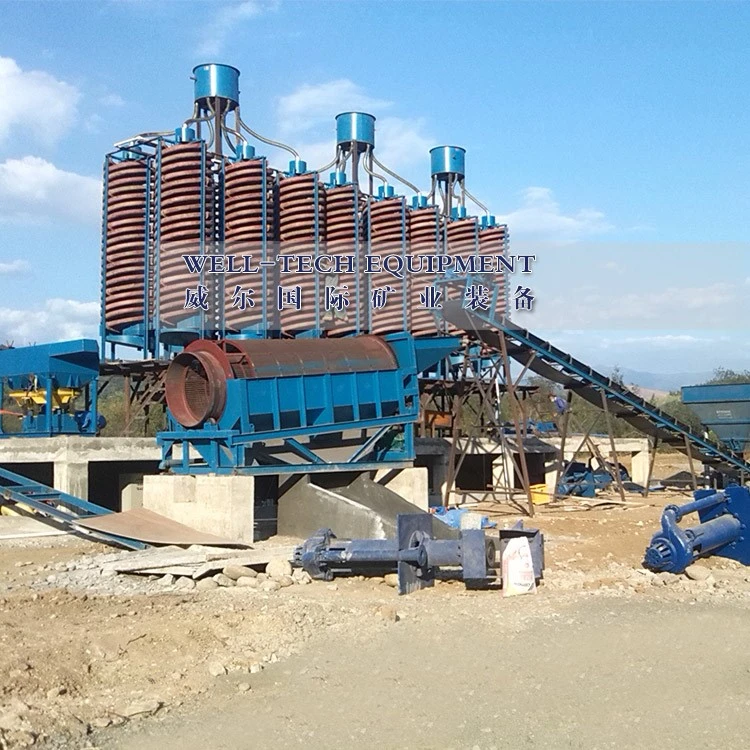

wash chrome plant

2) High-intensity magnetic separation (purification & auxiliary recovery)

First weak magnetic separation (0.1–0.3 T) to remove magnetite impurities

Wet high-gradient strong magnetic separator (magnetic field ≥10,000 Oersted / 0.5–1.5 T) recovers weak-magnetic chromite from gravity rough concentrate; separates non-magnetic silicate gangue efficiently.

(3) Flotation (target ultra-fine chromite <0.074 mm)

For fine-grained disseminated ore where gravity/magnetism fail:

Regulate pulp pH to 8–9; use high-efficiency anionic collectors (GC special chromite collector, oleic acid, tall oil) + gangue depressants (water glass)

Deploy roughing → scavenging → cleaning flotation circuit to retrieve chromite from gravity/magnetic tailings; can lift total recovery by 5–12% for fine ore deposits.

Standard high-recovery combined flowsheet

Raw ore → crush & wash → stage grind + classify

Spiral gravity roughing → rough concentrate → strong magnetic pre-clean

Magnetic concentrate → shaking table fine cleaning (qualified Cr concentrate ≥45% Cr₂O₃)

Gravity/magnetic tailings → deslime → flotation scavenge micro-fine chromite

Middling (intergrowth ore) → return to secondary regrind loop

4. Recycle Middlings & Tailings to Plug Recovery Leakage

Middlings are chromite-gangue intergrowths (Cr₂O₃ 10–20%) that cannot be fully separated in one pass; regrind middlings to <0.074 mm then re-separate, boosting total recovery by 5–10%.

Build tailings scavenging lines: Use small centrifugal gravity or flotation cells to capture fine chromite drained in final tailings.

5. Auxiliary Boosting Technologies

X-ray pre-sorting (dry pre-concentration) Sort crushed ore (-3 mm) by Cr element content before grinding; discard high-silica waste rock upfront, reduce grinding feed volume and raise head grade, improving subsequent separation efficiency.

Roasting pretreatment for altered/low-magnetism ore Heat ore to 1000–1200°C under reducing atmosphere to strengthen chromite magnetism; magnetic separation recovery improves significantly after roasting, ideal for weathered, refractory chrome ore.

Process automation & parameter fine-tuning Install online pulp density, particle size, grade sensors; auto-adjust feed rate, water flow, magnetic field strength, flotation reagent dosage to stabilize separation conditions and avoid fluctuating recovery.
