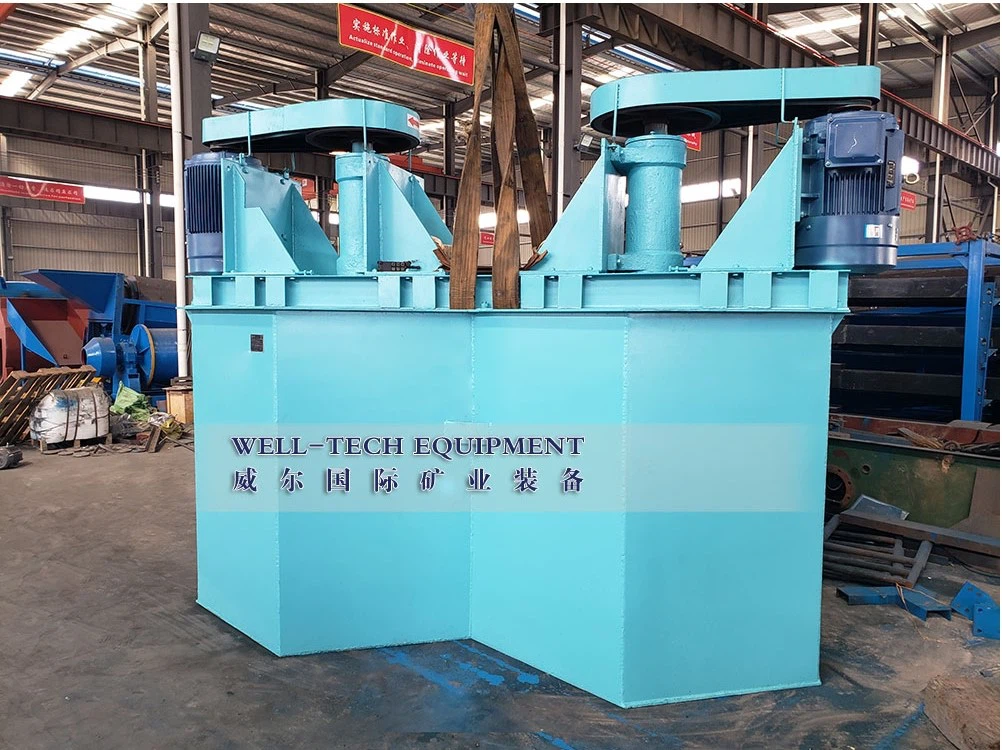

Hexagonal Scrubbing Machine

The agitating scrubbing machine is a scrubbing machine used to disperse mineral mud, remove and scrub the surface of minerals. The agitating scrubbing machine is suitable for direct mineralization or deposit of natural or artificial sand and various loose mud with a mineral particle size of 0-6mm. , carry out particle scrubbing and muddy filler dispersion, dissociation and separation, which can effectively remove the solvent and arrangement of paint on materials or material surfaces. It is resistant to corrosion, has long service life and low failure rate.

The agitating scrubbing machine is a scrubbing machine used to disperse mineral sludge, remove and scrub mineral surface impurities. The efficient stirring scrubbing machine is suitable for natural or artificial sand with a mineral particle size of 0-6mm, various loose mud particles or mineral deposits. It can effectively remove solvents and soil attached to the surface of minerals or materials by scrubbing and purifying particles and dispersing, dissociating, and separating muddy materials. The blades, shafts and tank of the scrubbing machine are lined with polyurethane and PP boards, which are easy to resist material impact and abrasion, have long service life and low failure rate. The unique tank structure and impeller configuration increase the scrubbing intensity by about 30% compared to traditional scrubbing machines of the same specifications. The scrubber is mainly composed of motor, reducer, main shaft, upper, middle and lower impellers, and tank body. The electric motor drives the three-layer specially designed rubber impeller on the main shaft to rotate through the hard-tooth surface reducer to scrub the material vigorously. The tank body is in the shape of a hexagonal body and is lined with wear-resistant materials.

Agitating scrubbing machine Working principle: The slurry enters the scrubbing machine cavity through the feeding pipe. Under the powerful stirring action of the impeller, the slurry generates violent turbulence. The mineral particles have huge momentum in them and produce violent friction and collision with each other. The impurity film wrapped on the surface of the mineral particles is not strong enough and can be easily peeled off the mineral surface after friction and impact. The cement on the mineral surface will be loosened and disintegrated after being soaked in water and then experiencing strong friction and collision between the mineral particles, thereby achieving the separation of clay and mineral particles. These film impurities and clay are broken down and peeled off into the slurry, and the slurry can be separated after subsequent desliming. In the actual production process, different chemicals must be added according to the actual conditions of the minerals.

Agitating scrubbing machine Technical parameters:
