Jiangxi Well-tech International Mining Equipment Co., Ltd. is one of the leading manufacturers and suppliers of hydrocyclone in China, also supports customized service. Please feel free to wholesale durable hydrocyclone for sale here from our factory. For price consultation, contact us.

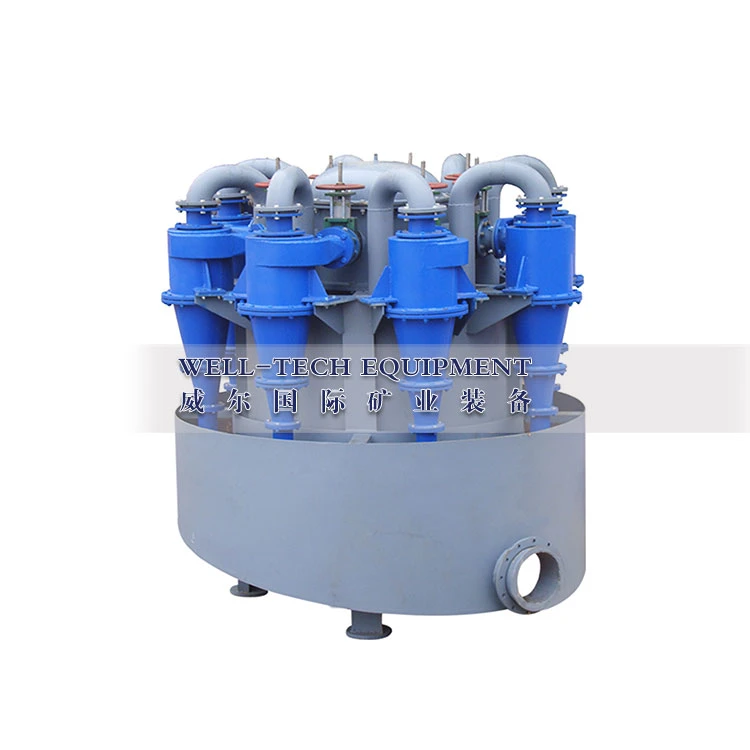

Hydrocyclone

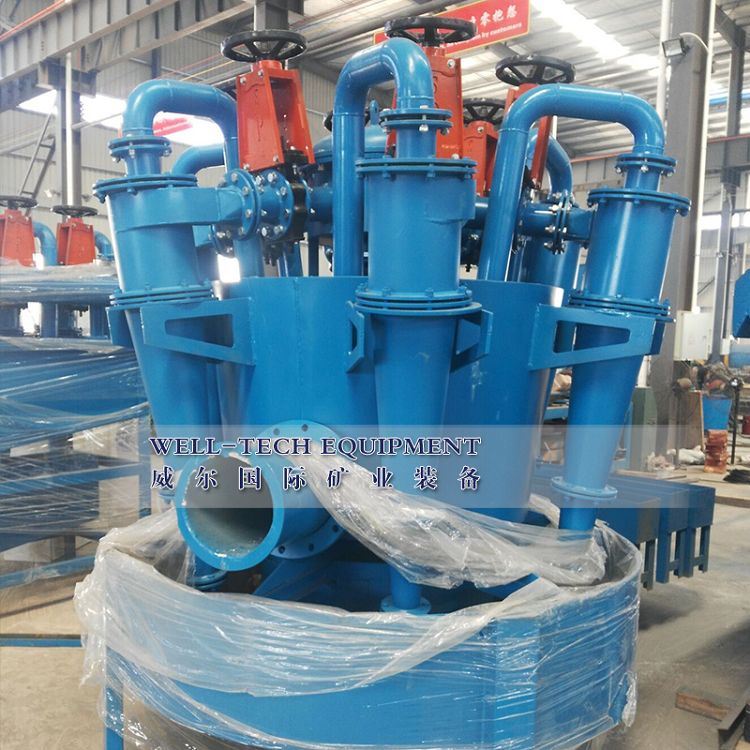

image001(001)

Description:

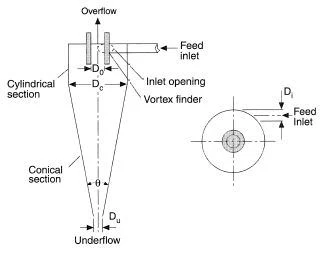

Hydrocyclone is a classification equipment that uses centrifugal force to accelerate the sedimentation of mineral particles. The main principle of this device is to use fluid pressure to generate centrifugal force and flow pattern, which can separate particles or droplets from the liquid medium. It has the characteristics of small area, low price, large processing capacity and high classification efficiency. Hydrocyclone is mostly used in the classification equipment in the second stage of closed-circuit grinding.

It is made of high-quality raw materials, beautiful in appearance, sturdy and durable as a whole, and has good durability. In addition, our Hydrocyclone has the characteristics of high wear resistance, high strength and light weight.

Technical Specification

Model	Canister Interior Diameter （mm）	Cone Angle （ｏ）	Overfall Pipe Dia. （mm）	Bottom Exit Dia. （mm）	Max. Permitted Feeding Granularity （mm）	Feeding Pressure （Mpa）	Processing Capacity （m³/h）	Classification Granularity （um）	Weight （Kg）
FX660	660	20	180~240	80~150	16	0.03-0.2	250~350	74-220	995
FX500	500	20	130~200	35~100	10	0.03~0.3	140~220	74~200	495
		15						74~150	540
FX350	350	20	80~120	30~70	6	0.04~0.3	60~100	50~150	182
		15						50~120	230
FX300	300	20	65~115	20~50	5	0.04~0.3	45~85	50~150	108
		15						40~100	169
FX250	250	20	60~100	16~45	3	0.06~0.35	40~60	40~100	72
		15						40~100	77
		10						30~100	83
FX200	200	20	40~65	16~32	2	0.06~0.35	25~40	40~100	60
		15						30~100	64
		10						30~100	69
FX150	150	20	30~45	8~22	1.5	0.06~0.35	11~20	30~74	20
		15						30~74	22
		8						30~74	60
FX125	125	17	25~40	8~18	1	0.06~0.35	8~15	20~100	10
		8						20~74	12
FX100	100	20	20~40	8~18	1	0.06~0.35	5~12	20~100	8
		15						20~100	13
		8						20~100	21
FX75	75	15	15~22	6~12	0.6	0.1~0.4	2~5	20~74	4.2
		6						5~40	7
FX50	50	15	11~16	3~8	0.3	0.1~0.4	1~2	10~74	2
		6						5~30	2.5

Application:

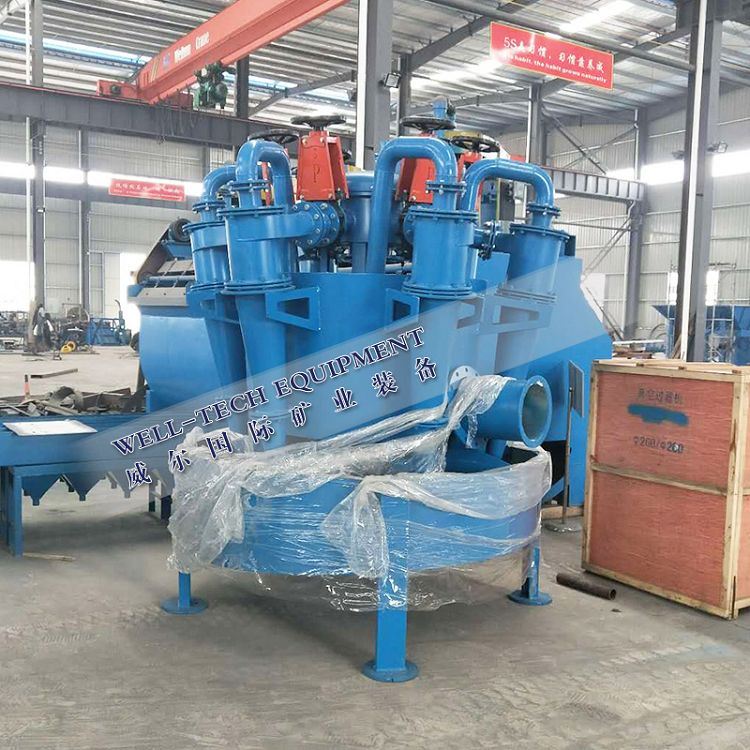

image005(001)

Gold cyclone separator

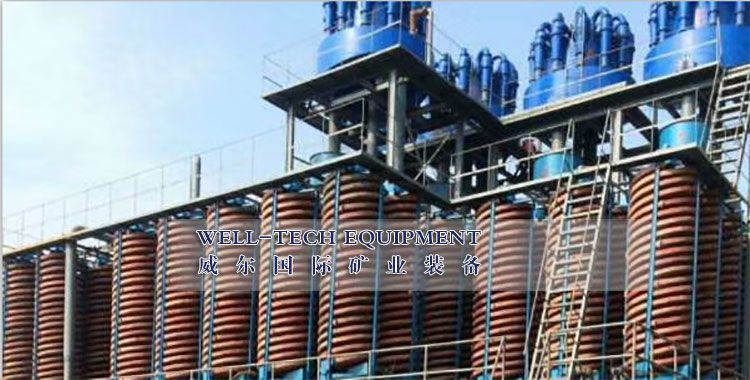

image007(001)

Water cyclone separator
