Raymond mill
Description:
Raymond Mill has a strong performance of becoming a complete set with a production system independently.
Large bulk materials crushed by the jaw crusher to the needed size are fed into the storage hopper by a mine hoist and then fed into a grinding chamber of main engine uniformly, quantitatively and continuously by a electromagnetic vibrating feeder for grinding. Grinded materials are blown into separator by blower for classification. With the function of impellers in the separator, materials without meeting the requirements of the fineness are fallen into a grinding chamber for grinding again; materials meeting the requirements of the fineness are blown into a cyclone powder collector with airflow through pipelines for separation and collection. The powder from a discharging device is the finished product. Separated airflow is back to blower through return duct on the top of the cyclone powder collector.
All important parts of raymond mill are made of high-quality steels, and all wear-resistant parts are made of high-performance wear-resistant materials. The whole machine has high wear resistance and reliable operation.
Features;
1:Hign perssure spring design
2:Smoothly vibration reduce design
3:Convenient vane adjust design
4:The machine has a strong material applicability,which suits for many kinds of material whose Moh's hardness is less than 6
5:Grinding device adopts supreimposed multistage seal, sealed performance is good
TECHNICAL PARAMETERS
Model | Max. Feed Size (mm) | Finished Product Size (mm) | Production Capacity (t/d) | Rotating Speed of Main Motor (r/min) | Main Motor Power (kw) | Milling Ring Diameter (mm) | Milling Ring Height (mm) | Milling Roller Diameter (mm) | Milling Roller Height (mm) | Milling Roller Qty. |
MTM75 | <15 | 0.613-0.033 | 1-3 | 160 | 18.5 | Inner Diameter 780 | 150 | 260 | 150 | 3 |
MTM85 | <20 | 0.613-0.033 | 1.2-4.6 | 150 | 22 | Inner Diameter 830 | 140 | 270 | 140 | 3 |
MTM100 | <25 | 0.613-0.033 | 2.1-5.6 | 130 | 37 | Inner Diameter 950 | 170 | 310 | 170 | 4 |
MTM130 | <30 | 0.613-0.033 | 3-9.5 | 103 | 75 | Inner Diameter 1280 | 210 | 410 | 210 | 5 |
MTM160 | <35 | 1.6-0.045 | 5-22 | 82 | 132 | Inner Diameter 1600 | 270 | 440 | 270 | 6 |
Application:

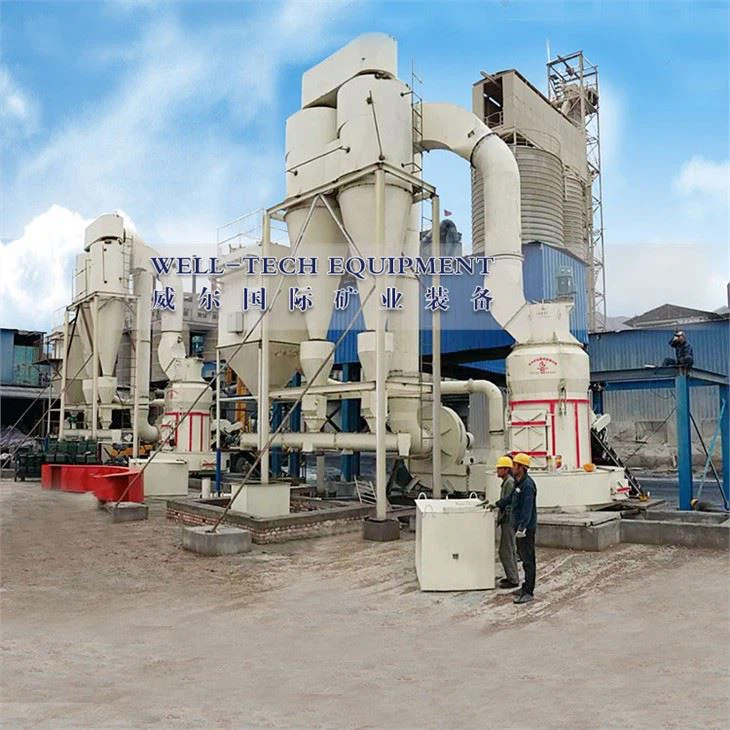

Grinding mill powder Raymond
Feldspar Raymond roller mill
