Linear Vibrating Screen

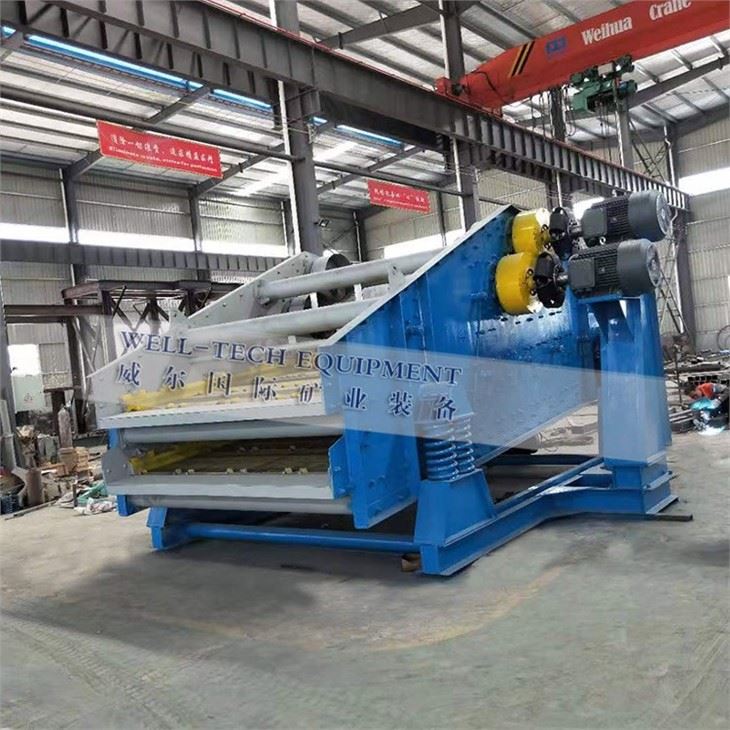

Eccentric block drive linear vibrating screen
Polyurethane screen(PU screen)
Double vibration motor drive type
Description
Name:vibrating screen/linear vibrating screen/screen machine/classifiy equipment/ vibrating screen mesh/sand screening machine vibrating screen
Driving type:double vibrating motor or eccentric block as option.
Application;Screening and classifying for Mining,plastics, chemicals,carbamide granulated,building materials,carbon, fertilizer and other industries.
if used for mining plant,nomally,after vibrating screen,the undersize material can to jig separator,gold centrifugal concentrator,or shaking table.
Capacity:1-200tons per hour
Screen size/vibrating screen sieve: 0.5-50mm
Linear vibrating screen Advantages and Characteristics
● Adopting eccentric block or double vibrating motor as option.
● screen mateiral can be Polyurethane screen or stainless steel or high mangaese woven net or steel rod.
● It can be sing layer or double layer or three layer screen
● Adopt tire coupling, soft connection makes operation smooth;
● High accuracy screening ratio, adjustable particle size, large capacity, high screening efficiency and long life;
● Fully sealed structure, automatic layout, more suitable for assembly line work;
● Simple and stable structure, convenient maintenance.
Linear vibration screen Main Technical Parameters
Model | Layer | Mesh size (mm) | Feeding size | Capacity (t/h) | Double-amplitude | Vibration angle ( °) | Power (Kw) |
ZKB0936 | 1 | 0.5~13 | <100 | 4-40 | 6~8 | 45 | 3*2 |
2ZKB1020 | 2 | 0.5~25 | <100 | 5-60 | 6~8 | 45 | 3*2 |
ZKB1025 | 1 | 0.5~25 | <100 | 5.5-60 | 6~8 | 45 | 3*2 |
ZKB1225 | 1 | 0.5~25 | <100 | 7-80 | 6~8 | 45 | 3*2 |
ZKB1236 | 1 | 0.5~25 | <100 | 9-100 | 6~8 | 45 | 5.5*2 |
2ZKB1236 | 2 | 0.5~50 | <100 | 16-150 | 6~8 | 45 | 5.5*2 |
2ZKB1437 | 2 | 0.5~50 | <100 | 24-200 | 6~8 | 45 | 5.5*2 |
ZKB1545 | 1 | 0.5~50 | <100 | 26-200 | 6~8 | 45 | 5.5*2 |
ZKB1756 | 1 | 0.5~50 | <300 | 30-300 | 6~8 | 45 | 11*2 |
2ZKB1756 | 2 | 0.5~50 | <300 | 30-400 | 6~8 | 45 | 11*2 |
ZKB1836 | 1 | 0.5~50 | <300 | 35-400 | 6~8 | 45 | 11*2 |
2ZKB1848 | 2 | 0.5~80 | <300 | 40-600 | 6~8 | 45 | 11*2 |
ZKB1856 | 1 | 0.5~80 | <300 | 45-500 | 6~8 | 45 | 11*2 |
2ZKB1856 | 2 | 0.5~80 | <300 | 50-600 | 6~8 | 45 | 15*2 |
2ZKB2055 | 2 | 0.5~80 | <300 | 65-1000 | 6~8 | 45 | 15*2 |
*Polyurethane screen and high manganese woven net for your option.normally,it with polyurethane more durable.
*there are two type drive way,one is one double vibration motor drive,one is use Eccentric block drive.
*All machine is customization.
High frequency vibrating screen to Australia
Clay gold plant processing in Ghaha
Vibrating screen for sand plant
About JiangXi Well-tech International Mining Equipment Co.,Ltd:
FAQ:
Q: How many layer vibrating screen can be produced?
A:1 layer or 2 layer or 3 layer.
Q: What's the screen material?
A: PU screen or high manganese steel or steel bar.
Q: how many kinds of model?
A: besides the main technical parameters,it can according to your requirement to customization.
