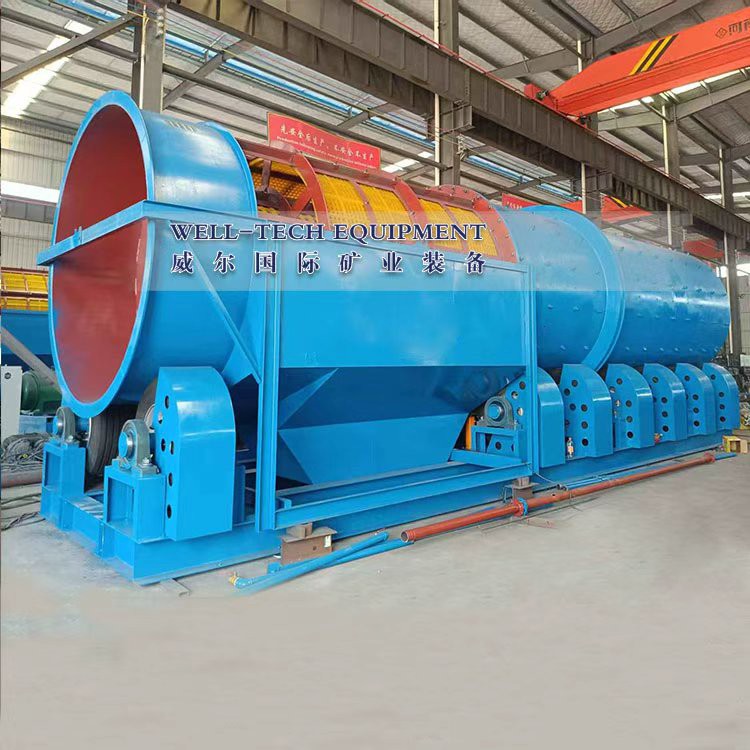

Scrubber Trommel
Description:
Wheel drive rotary scrubber is new type rotary scrubber,It use wheels/tires for driving.running is more stable.
Function:Washing sticky clay mining minerals,kaolin.
Capacity:30-300tons per hour.
Feeding size:-230mm
Heavy-duty rotary scrubber ore washing machine is a kind of mechanical equipment widely used in ore cleaning and screening. Its main features include: Simple structure and stable operation: The heavy-duty trommel scrubber ore washing machine has a compact and simple operation structure and can meet long-term and stable production needs. Large processing capacity: The heavy-duty drum washing machine has greater processing capacity and can effectively clean large material,and improve cleaning efficiency. Energy saving and environmental protection: The heavy-duty storage ore washing machine adopts advanced cleaning technology, which can effectively eliminate wear and damage on the ore surface while reducing the impact on the environment. Wide scope of application: Heavy-duty and various difficult-to-unload ore washing machines are suitable for cleaning max feeding size 230mm stone, such as gold, silver, copper, iron, lead, zinc, etc. In short, the heavy-duty washing and mining machine is an efficient, environmentally friendly and energy-saving ore cleaning equipment with wide application prospects. For more information about heavy-duty washer mining machines, it is recommended to consult a professional.
Gold wash plant to Australia
Fearture:
1:Designed to break up alluvial gravels, clays and sand
2:Running stable,use wheels for driving.
3:Long working life,with Natural Rubber lining.
4:Screen can be polyurethane screen or High manganese steel net.
5:Can accept material up to 230mm.
6:Thickening type steel plate for the drum.
Use tires for driving Rotary scrubber
Rotary scrubber drum washing plant to Russia
Rotary scrubber how to work?
The working principle of the cylinder washing machine is: the cleaning cylinder is supported by four tugs, the motor drives the reducer, and the large and small gears drive the cleaning cylinder to rotate at low speed. The aggregates containing mud balls and stone powder are fed from the feed port and enter the rotating drum. They are continuously lifted and thrown down by the wear-resistant rubber lining installed at a certain angle in the cleaning drum, and move from the feed end to the discharge end. During the process, it circulates multiple times and is rinsed and washed by forward or reverse flushing water. The cleaned aggregate is screened and dehydrated by the discharge end drum screen and then discharged. Wastewater containing sludge flows out through the perforated baffle at the discharge or feed end.
Linning Plate Material of Rotary Scrubber
In order to increase the washing effect, we put linning plates insider of the drum scrubber part, it can be made below two kinds material:
1. Iron material spiral plates: normal material, can't be replaceable, welded inside drum.
2. Natual Rubber lined plates: wear-resistance, long life time, corrosion resistant, fixed with screw, replacable, easy to replace.
3.Polyurethane lining.
With Rubber Lining
With Polyurethane lining
Main structure of Trommel Scrubber Washer
1. Drum scrubber : For washing the clay.
2. Trommel scrubber Inner plate: separating the clay and ores, washing more clean the clay.
3. Trommel scrubber Sieving screen: for sieving different sizes ores, the screen mesh size& layer quantity & screen materials can be made according to customer need.
4. Motor: electric.
5. Carrier rollers: For support the drum
6. Gear, tires,Reduction Box, coupling.
7. Machine Frame: Supporting the reduction box and motor.
Screen part can with or without,screen material can be Polyurethane screen,High Manganese Screen,Steel rod,Punching screen
Rotary scrubber without screen part
with PU Screen
With High Manganese Screen,Steel rod
scrubber trommel Punching screen
Application:
