Mobile trommel
Name:Gold wash trommel/portable trommel/wash trommel machine/gold trommel wash plant
Descriptions

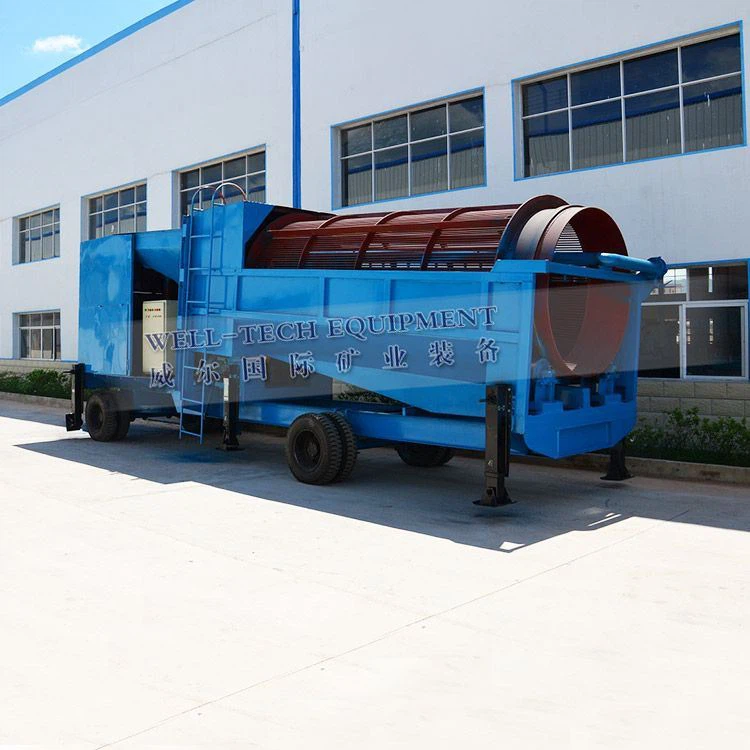

Compared with the fixed drum, the Mobile Trommel increases wheels and mobile platform, so it is convenient to move. When working on site, use heavy feet to contact the ground. When movement is required, use a truck or excavator to pull the front turntable.
The mobile drum washing machine is composed of hopper, drum, chassis, tire, rotary table, generator, water pump, transmission device, control panel and gold recovery gate. Mobile roller screen is an optimized mobile gold recovery platform, which is suitable for small and medium-sized placer gold ore processing requiring mobile operation. Its advantages: less investment, less labor, fast return on investment, simple operation, movable, etc.
The chassis adopts heavy beam and is equipped with six tires. It has firm structure and high bearing capacity. Moreover, the front wheel can turn 180 degrees and move flexibly, so that the mobile platform can easily deal with various complex roads. In addition, the chassis is also equipped with four other mechanical legs, which can enhance the bearing capacity of the whole chassis and ensure that the Mobile Trommel runs more stably, reliably and safely under load. The generator and motor are driven separately or directly driven by diesel engine, with low failure rate and easy maintenance. The gold recovery gate is covered with polyethylene non-woven fabric and professional gold recovery carpet, which has strong capture capacity and high efficiency, and is also effective for fine gold.
Trommel Features
◆ Economical and efficient solution for screening
◆Heavy duty trommel drum with lifters at the front to facilitate material break up
◆Screen replaceable for different mesh sizes
◆Multi layer screens
◆Easily changed screen plates
◆High efficiency and big capacity
◆Unique screen design, high capacity, longer screen life and no material clogging
◆Heavy duty feed hopper
◆Discharge chute
◆Gear drive mechanism
◆ With wheels and mobile platform,so easy to moving.
Trommel screen Technical Specifications
Model | Capacity(t/h) | Drum(screen)diameter(mm) | Drum(screen)length(mm) | Screen size(mm) | Dimension(mm) |
MGT1230 | 30-50 | 1200 | 2500 | 2-25 | 4176*1506*2232 |
MGT1545 | 80-100 | 1500 | 4500 | 7021*1860*2528 | |
MGT1848 | 100-150 | 1800 | 4800 | 7400*2150*3000 | |
MGT2055 | 150-200 | 2000 | 5500 | 8500*2500*3600 |
Processing details:

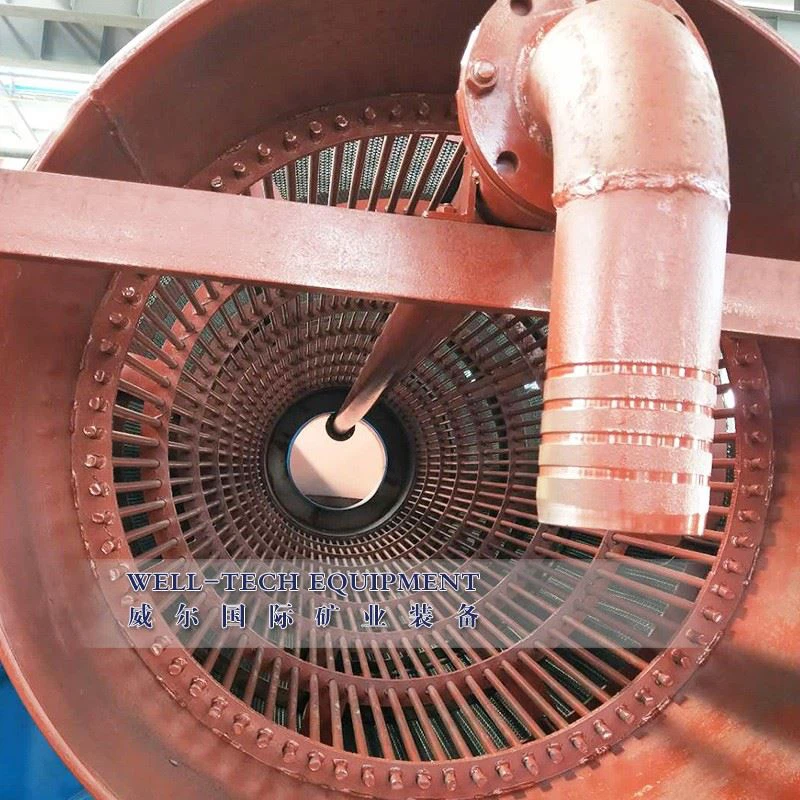

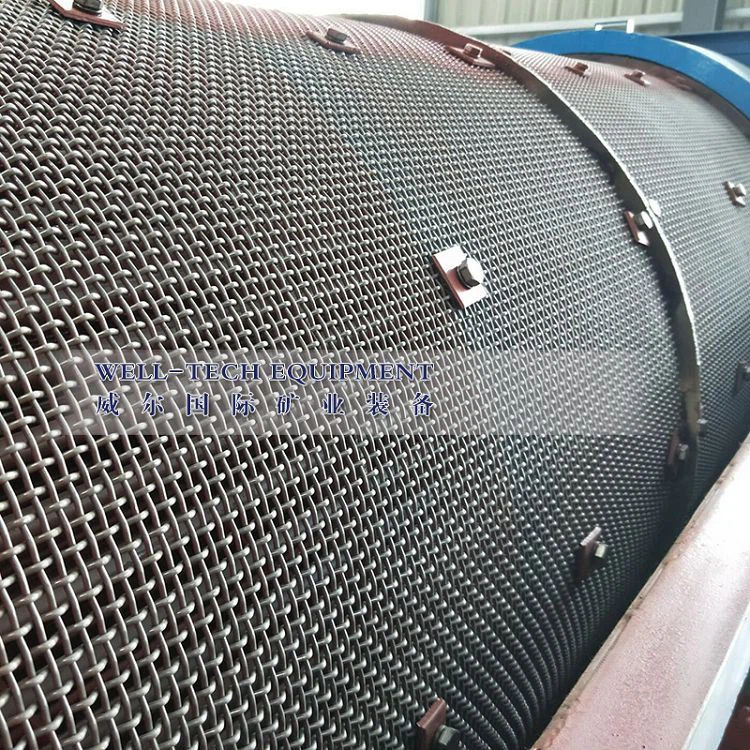

Drum screen high manganese steel woven net
Normally,inside is steel bar for protect out layer is high manganese steel woven net.
so the working lifetime is longer.
Application:

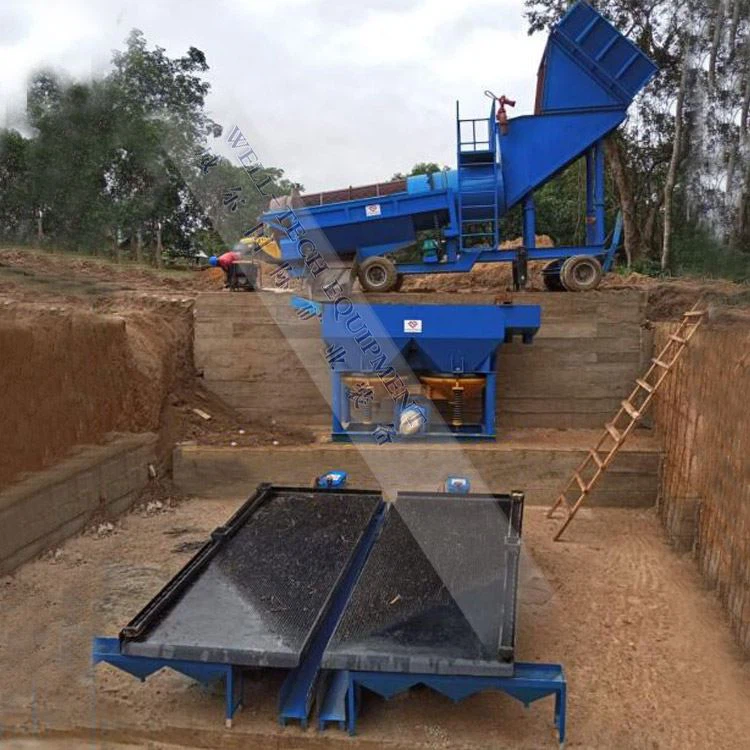

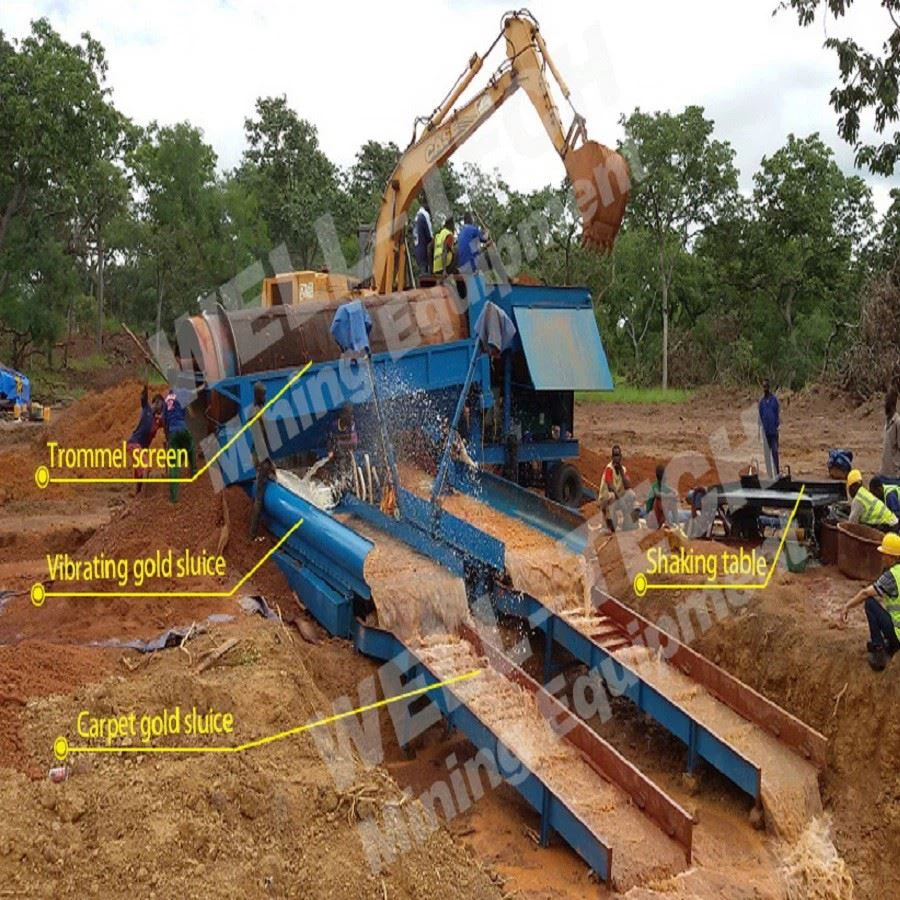

Portable gold trommel Wash plant
1: at first use trommel screen for washing and screening.
2:oversize material to vibrating sluice box and carpet gold sluice box for separation.
3:at last all gold concentrate to shaking table for concentration.
Place gold plant in Africa

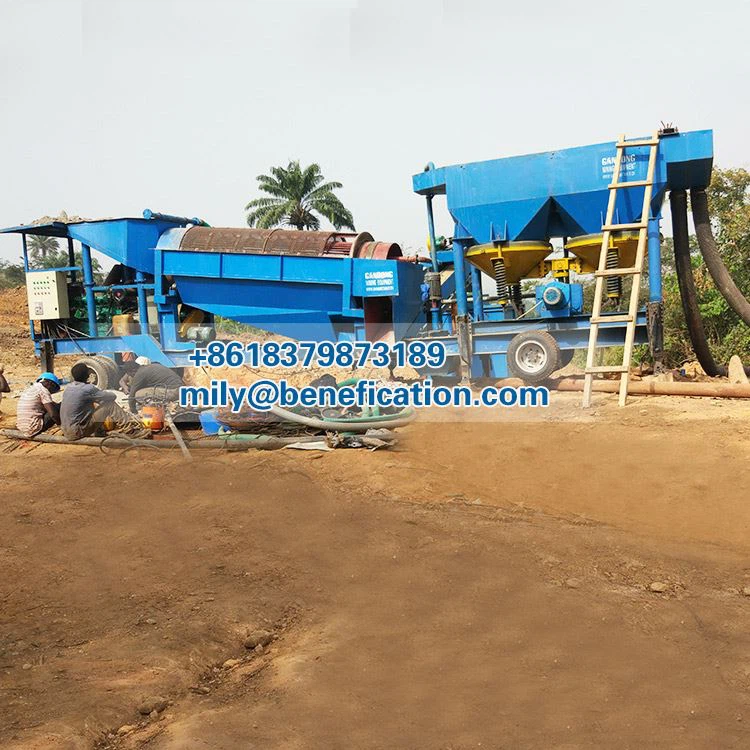

Mobile diamond plant

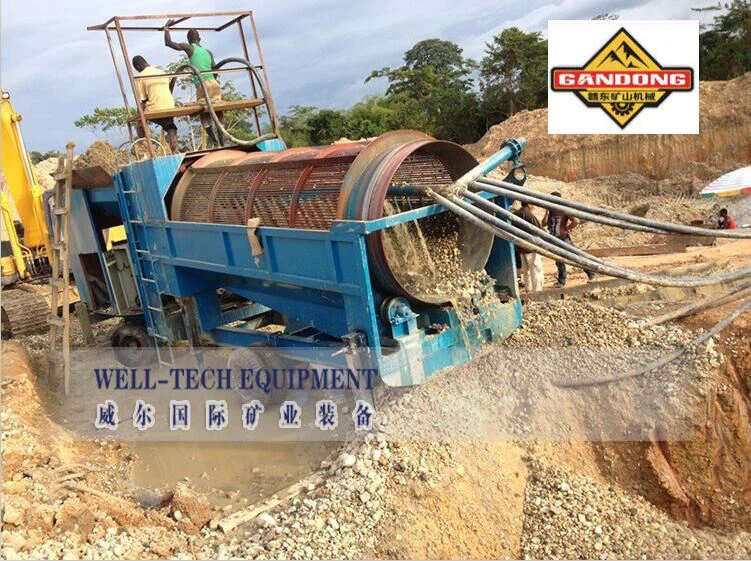

Gravel trommel screen

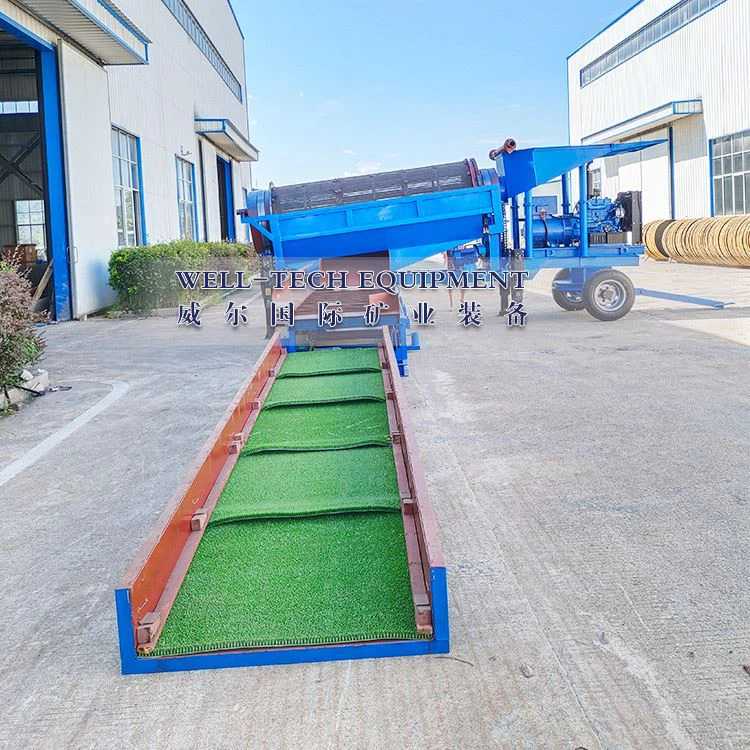

Small gold trommel wash plant
40-50TPH alluvial gold plant
Gold mining plant use jig machine
Brief introduceJiangXi Well-tech International Mining Equipment Co.,Ltd:
Jiangxi Well-tech International Mining Equipment Co.,Ltd is the largest manufacturer and exporter of gravity separator equipment in China,Our company covers an area of 48,000 square meters, the workshop covers 20,000 square meters, we have various large modernized machinery process facilities, professional engineering team and installation team. We are moving towards company collectivization to achieve.shaking table,spiral concentrator,jig machine,centrifugal concentrator,vibrating sluice box,trommel,rotary scrubber etc wash plant machine is our advantage products,We have rich experience of recovery gold,diamond,tantalum niobium,chrome,tin,tungsten,zircon,ilmenite etc,include alluvial and stone type.We can provide designflowchart, processing equipment, engineer installing guide and debuggingat worksite.Now our products have been exported to over 60 countries,such as America,Australia,Russia,Peru,Ghana,PNG,Zimbabwe,Brazil, Turkey,Congo, Morocco, India, Indonesia, Malaysia, Philippines,Zambia etc.
Trommel FAQ:
Q;What’s the application of trommel screen?
A:Washing alluvial ore or screening gravel or sand plant.
Q:Does it include a lot sticky clay of raw material?
1) If contain sticky clay ore, more than 30% or not?
2) what's Capacity required to start?
3) -5mm materials percentage?
Q: Biggest capacity our trommel screen can process?
A: 200-300tph
Q: How big are the screen mesh size and how many layers?
A: Usually, our trommel is double layer, the inner screen mesh is 5mm, outer screen mesh is 10mm. But we can build it as you required, we will use the Ø25mm diameter round steel to build the inner steel bar, outside screen material is high manganese.
Q: If very small outer screen mesh size, will clogged?
A: We will add a steel brush onto the drum, so won’t be clogged at all. And we use the unique screen mesh design, result in longer screen life & no material clogging.
Q: Screen mesh material?
A: We use high manganese steel to build the screen mesh which is very durable.
Q: Can we change the screen mesh?
A: Yes, you can, usually we build the screen mesh to be active, so you can change the screen mesh size by yourself easliy on site.
Q: Can you provide whole line machine?
A: Yes, we can help you combine a complete mineral processing line. and give you related professional advice as long as you need. There is a rich experienced engineers team of us, these 12 engineers always fly out of China to install, debugging our equipments on site and trainning the buyer’s staff.
Q: How long is the guarantee of your equipments? Does your company supply the spare parts?
A: The warranty period of is one year, if break during this guarantee period, we need to replace new one for you AT NO COST. And of course we will supply the spare parts for you for life-long time at lowest cost.
Q: Do you cut the steel plate by hand?
A: No, we use the plasma cutting machine to cut all materials which is controlled by computer. It’s very accurate.
