Auto Centering Vibrating Screen
video
Auto Centering Vibrating Screen

Auto Centering Vibrating Screen

Automatic center vibrating screen can be used for coarse, fine and superfine size separating for ore and coal, also can be used for dewatering or desliming processing for other materials.
Send Inquiry

Product Introduction

Jiangxi Well-tech International Mining Equipment Co., Ltd. is one of the leading manufacturers and suppliers of auto centering vibrating screen in China, also supports customized service. Please feel free to wholesale durable auto centering vibrating screen for sale here from our factory. For price consultation, contact us.



Auto Centering Vibrating Screen

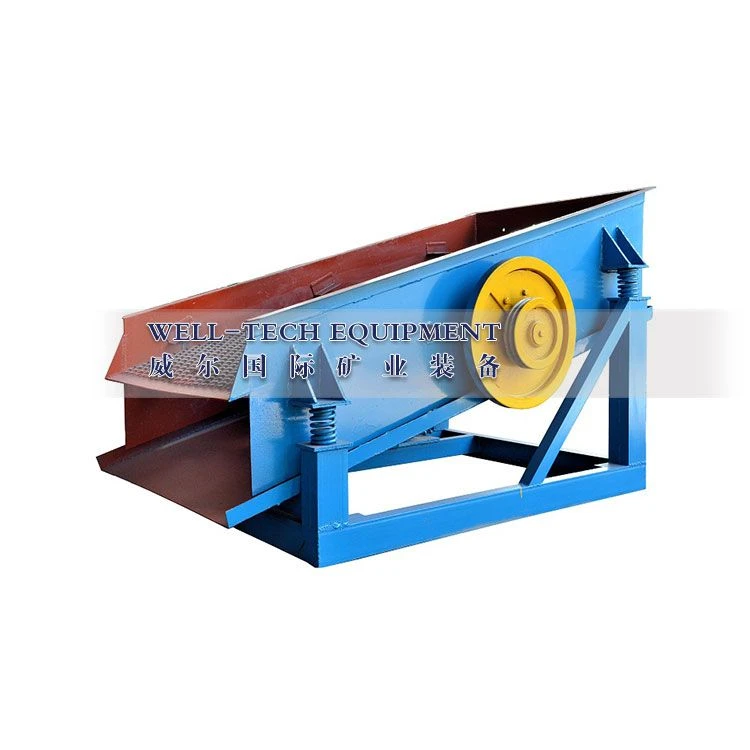

image001(001)

Brief Introduction

Automatic center vibrating screen is belong simple circular vibrating screen, It can be used for screening coarse material and fine and superfine size material, screening for mining and coal, and stone sand plant.

Scope of Application : Apply to mining, metallurgy, building materials, chemical industry and other departments for granular materials in the classification


 Automatic center vibrating screen Advantages and Characteristics

● because strong vibrating on the screening box, so reduce material block, and high screening efficiency and high capacity.

● Simple structure, easy to replace the screen

● Less power consumption

● low cost



Main Technical Parameters

Model

Layer


Max.

Feeding size

(mm)

Sieve

Size

(mm)

Capacity
(t/h)


Frequency

(r/min)

Angle

(°)


Power

(Kw)


Dimension

L*W*H

(mm)

Weight

(kg)

SZZ600×1200

1

40

2-25

10-20

1000

15-25

2.2

1370×890×330

340

SZZ2600×1200

2

40

2-25

10-20

1000

15-25

2.2

1370×890×430

360

SZZ900×1800

1

40

2-25

20-25

1000

15-25

2.2

2150×1358×575

550

SZZ2900×1800

2

40

2-25

20-30

1000

15-25

3

2489×1358×770

620

SZZ1250×2500

1

100

2-40

50-150

850

15-20

5.5

2762×1714×680

1100

SZZ21250×2500

2

150

2-40

50-150

850

15-20

5.5

2702×1714×740

1300

SZZ1500×3000

1

100

2-40

70-220

800

15-25

7.5

3320×1449×787

2100


image003(001)

Sieve machine vibrating screen



image005(001)

Efficiency vibrating screen

Application:

washing  and screening machine

                                                    Sticky clay alluvial gold plant
